RTQ-XF Large-Bore Rotary Joint for Drum Drying Equipment
Dual-spherical, multi-spring seal for high-efficiency drying lines
Overview
Large drying equipment demands larger-bore rotary joints to raise throughput. The RTQ-XF large-bore joint uses a dual-spherical design with a combined multi-spring arrangement that effectively prevents media short-circuiting and keeps sealing reliable. It is widely applied in wood chip dryers, pulverized coal dryers, calcium carbonate drying drums, and horizontal grain conditioning kettles.
Key Features
- Large-bore design for high-throughput drying lines
- Dual-spherical seal prevents media short-circuiting
- Combined multi-spring loading for uniform compensation
- Reliable in wood, coal, mineral, and grain drying duty
Typical Applications
Operating Conditions
| Media | Steam, hot water, thermal oil |
|---|---|
| Notes | Final operating parameters are confirmed per application — send your medium, pressure, temperature and speed for selection. |

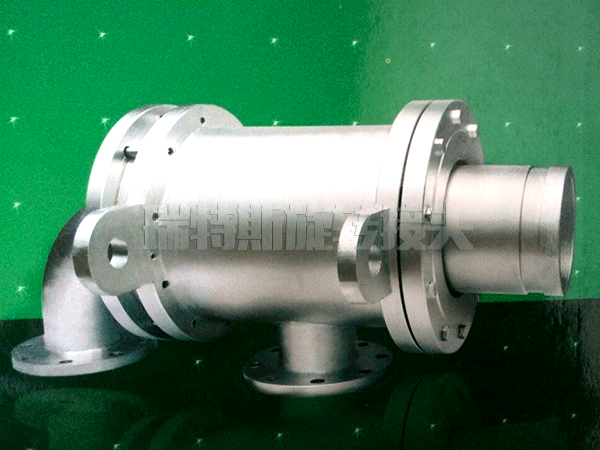

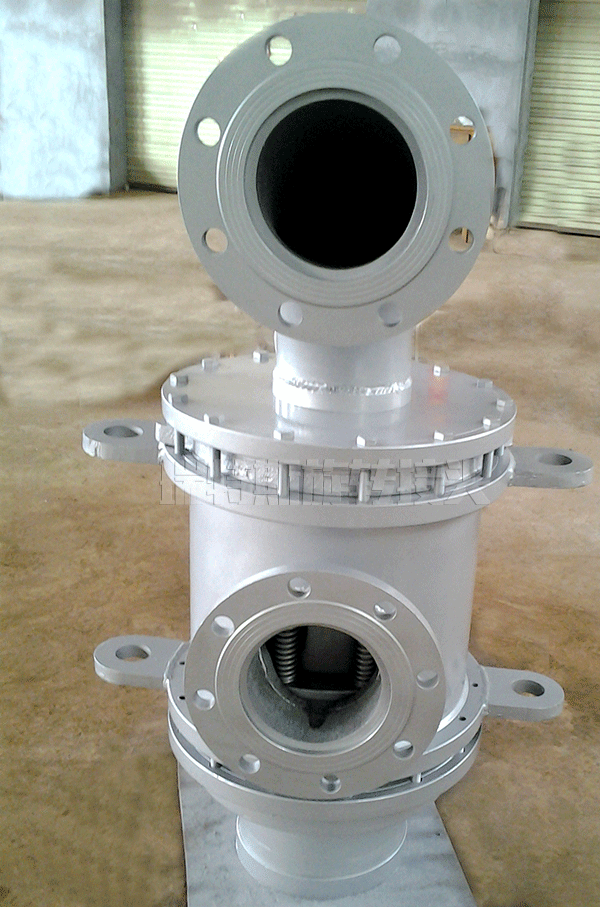

Product Gallery
Related Products
RTO Rotary Joint for CFB Boiler Slag Cooling Systems
Purpose-built for high-pressure condensate cooling in large CFB units
Rotary Joints for Building Material Calenders
Chain-drive and universal-joint drive solutions, with integrated power transmission
M-Type Rotary Joint for Metallurgical Continuous Casting
Embedded, maintenance-free joint engineered for the casting machine
Send Us Your Drawing or Duty Conditions
Tell us the medium, temperature, pressure, speed and connection size. Our engineers reply with a selection or a custom proposal — usually within one working day.
