JL-DD / JL-DC — Right-Angle Hydraulic Swivel Joints
Compact right-angle swivel for high-pressure hydraulic circuits
Overview
The JL-DD and JL-DC series are designed for high-pressure applications with low rotation or oscillation frequencies. Compact size with easy installation, constructed entirely of stainless steel with oil-free composite bearings for larger sizes. Suitable for ambient-temperature hydraulic oil circuits up to 35 MPa.
Key Features
- Compact right-angle design
- Entirely stainless steel construction
- Oil-free composite bearings (large sizes)
- Up to 35 MPa working pressure
Typical Applications
High-pressure hydraulic oil circuits
Low-speed rotation or oscillation equipment
Industrial machinery with right-angle fluid transfer
Operating Conditions
| Media | Coolant, hot water, cold water, oil, compressed air |
|---|---|
| Max Pressure | 35 MPa |
| Max Temperature | 100°C |
| Speed Range | Up to 100 rpm |

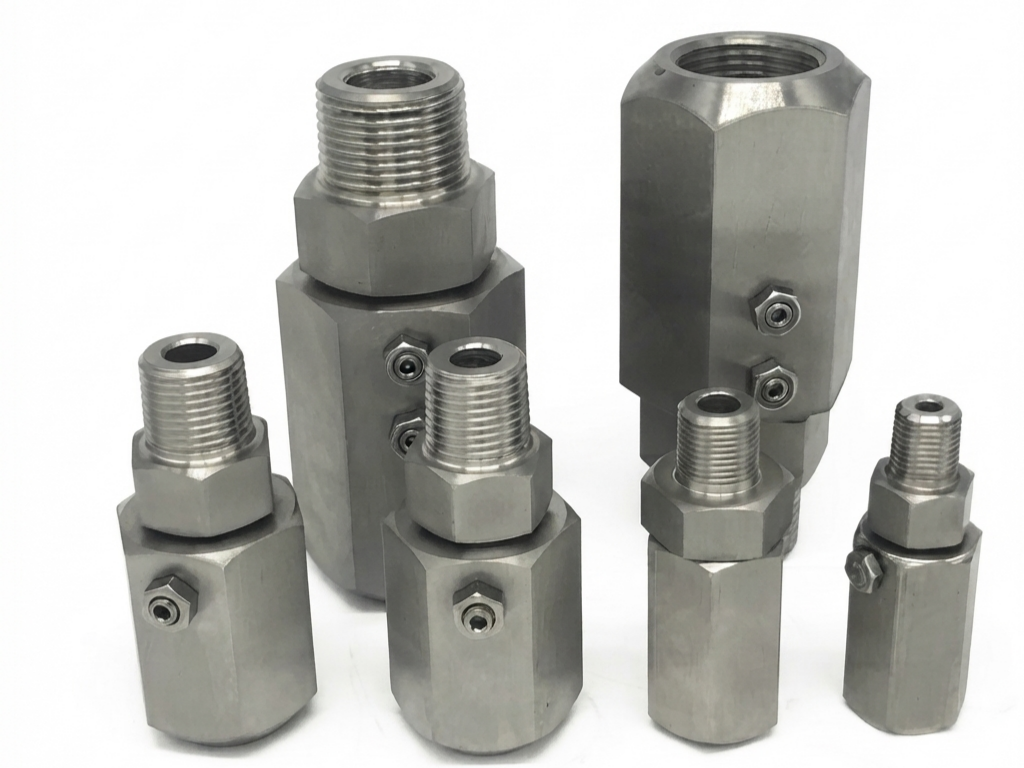

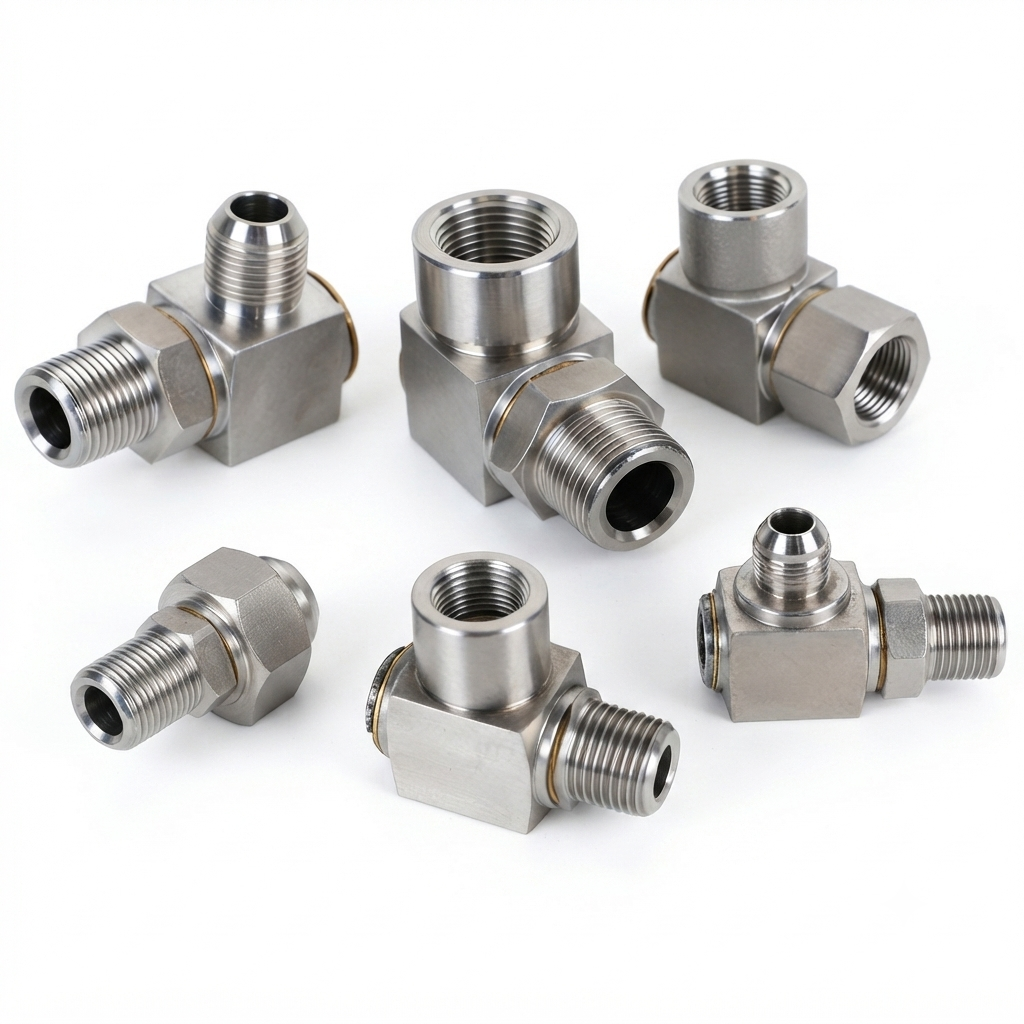

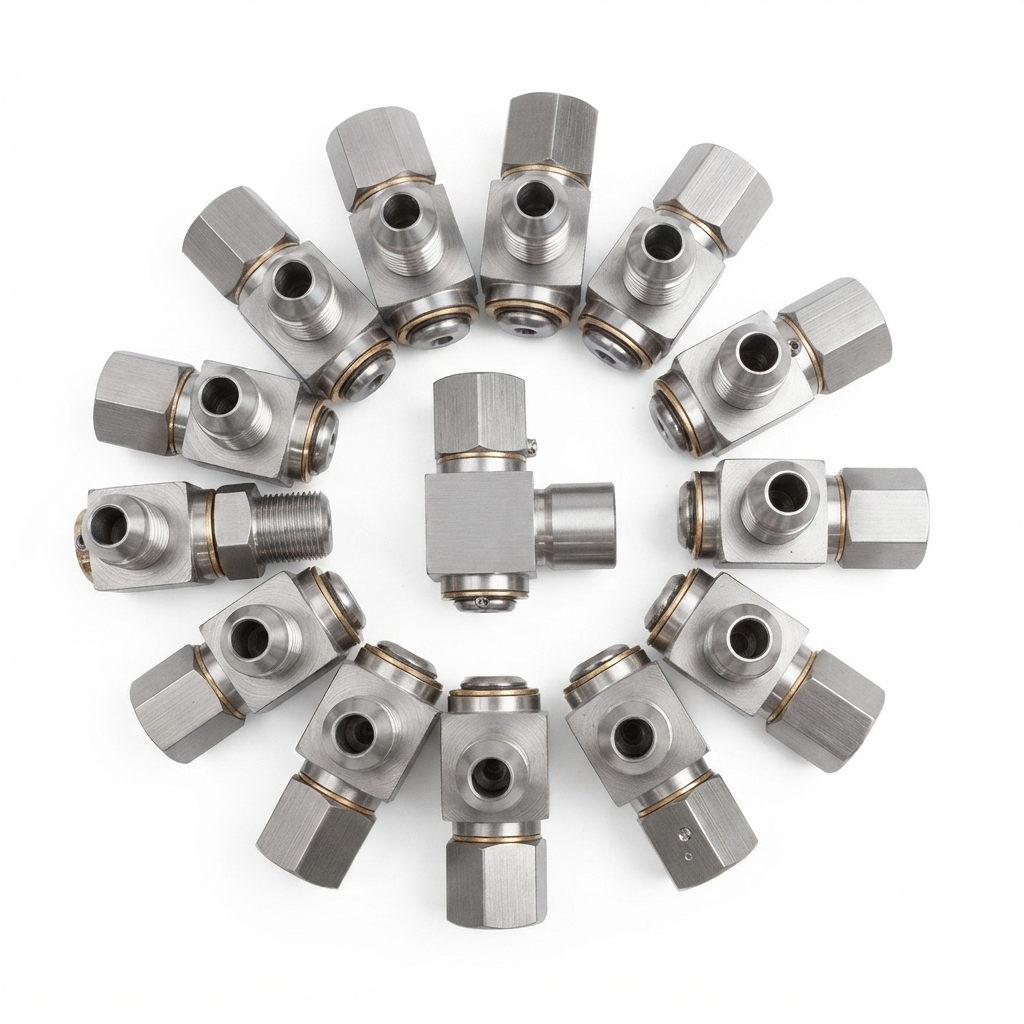

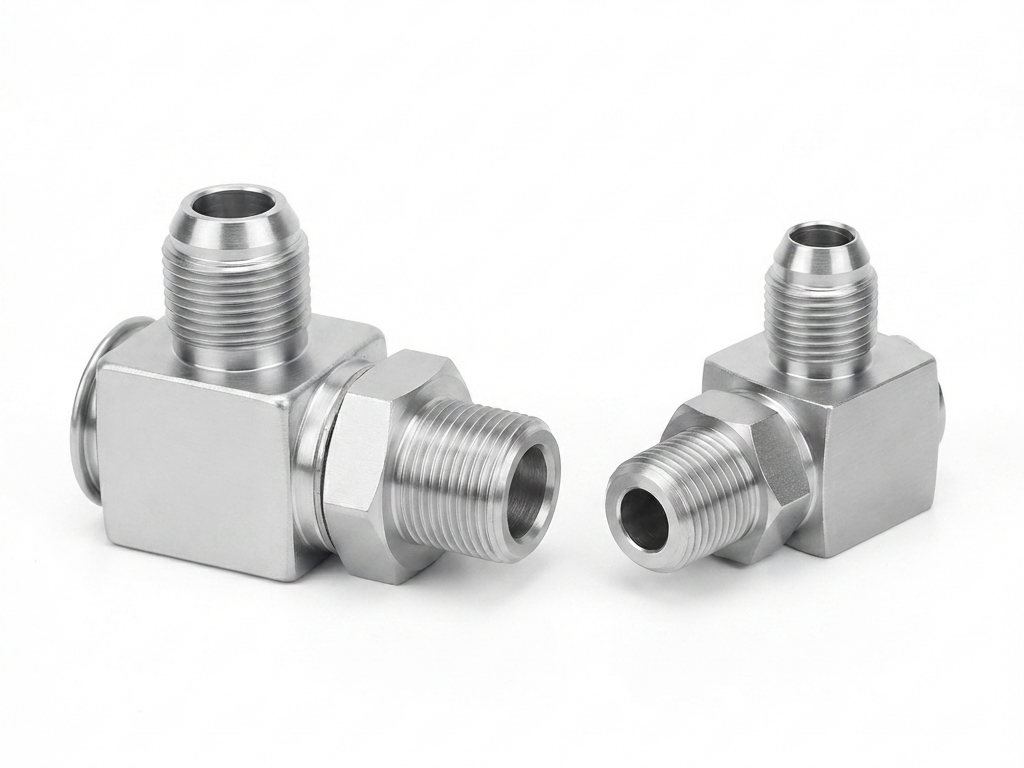

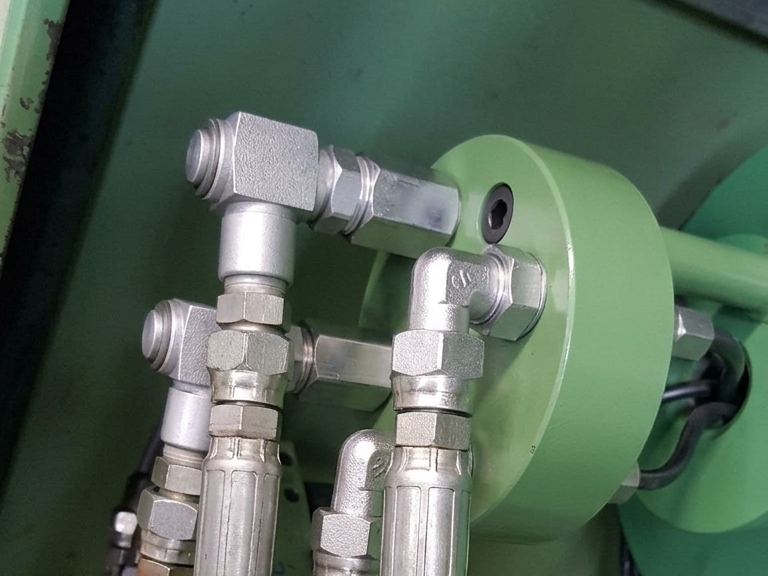

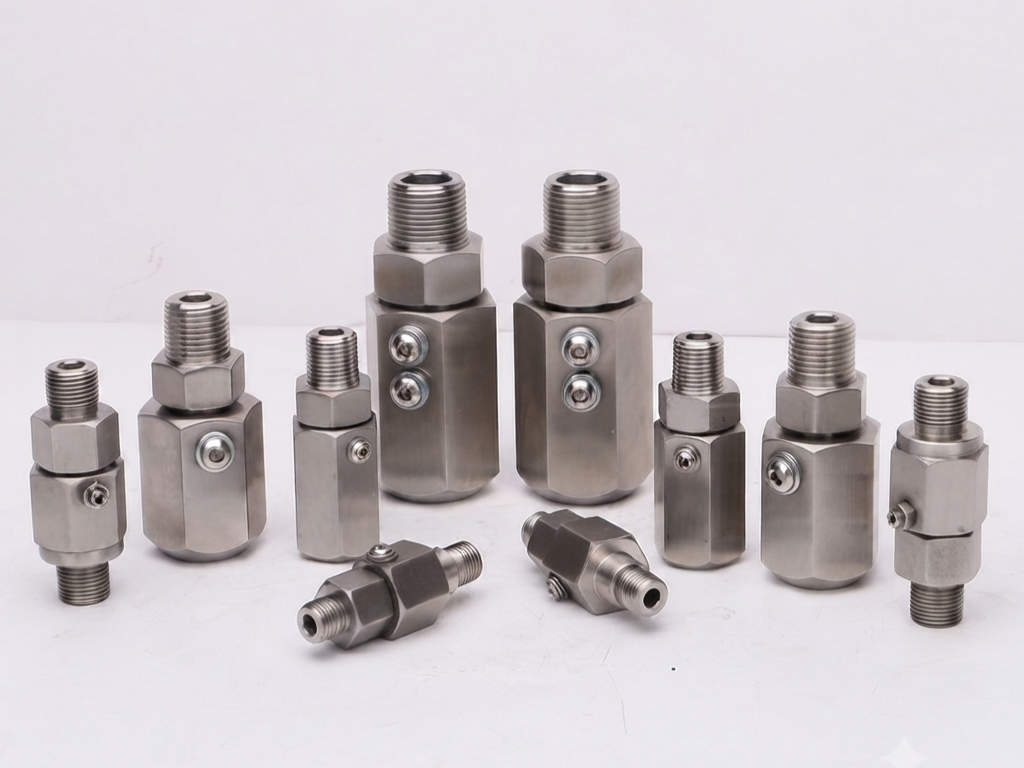

Product Gallery
Get in Touch
Send Us Your Drawing or Duty Conditions
Tell us the medium, temperature, pressure, speed and connection size. Our engineers reply with a selection or a custom proposal — usually within one working day.
