Interchangeable with: DSTI / Deublin 55 Series
RT-JG Series — Stainless Steel Rotary Joint
Direct replacement for DSTI / Deublin 55 Series
Overview
The RT-JG series is developed as a direct alternative to the German Maier DP series and the American Deublin 55 series. Features precision-cast stainless steel housing, external multi-spring balanced seal, all stainless steel internals, and disc-type static sealing ring with pin-style anti-rotation mechanism.
Key Features
- Replacement for DSTI / Deublin 55 Series
- Precision-cast stainless steel housing
- Disc-type static seal with pin anti-rotation
- Excellent adaptability to poor water quality
Typical Applications
Steel and paper mill roll cooling
Chemical and textile processing
Applications requiring stainless steel construction
Operating Conditions
| Media | Coolant, hot water, cold water, oil, compressed air |
|---|---|
| Max Pressure | 1.6 MPa |
| Max Temperature | 120°C |
| Speed Range | Up to 5,500 rpm |
| Notes | Higher parameters achievable by replacing materials. |

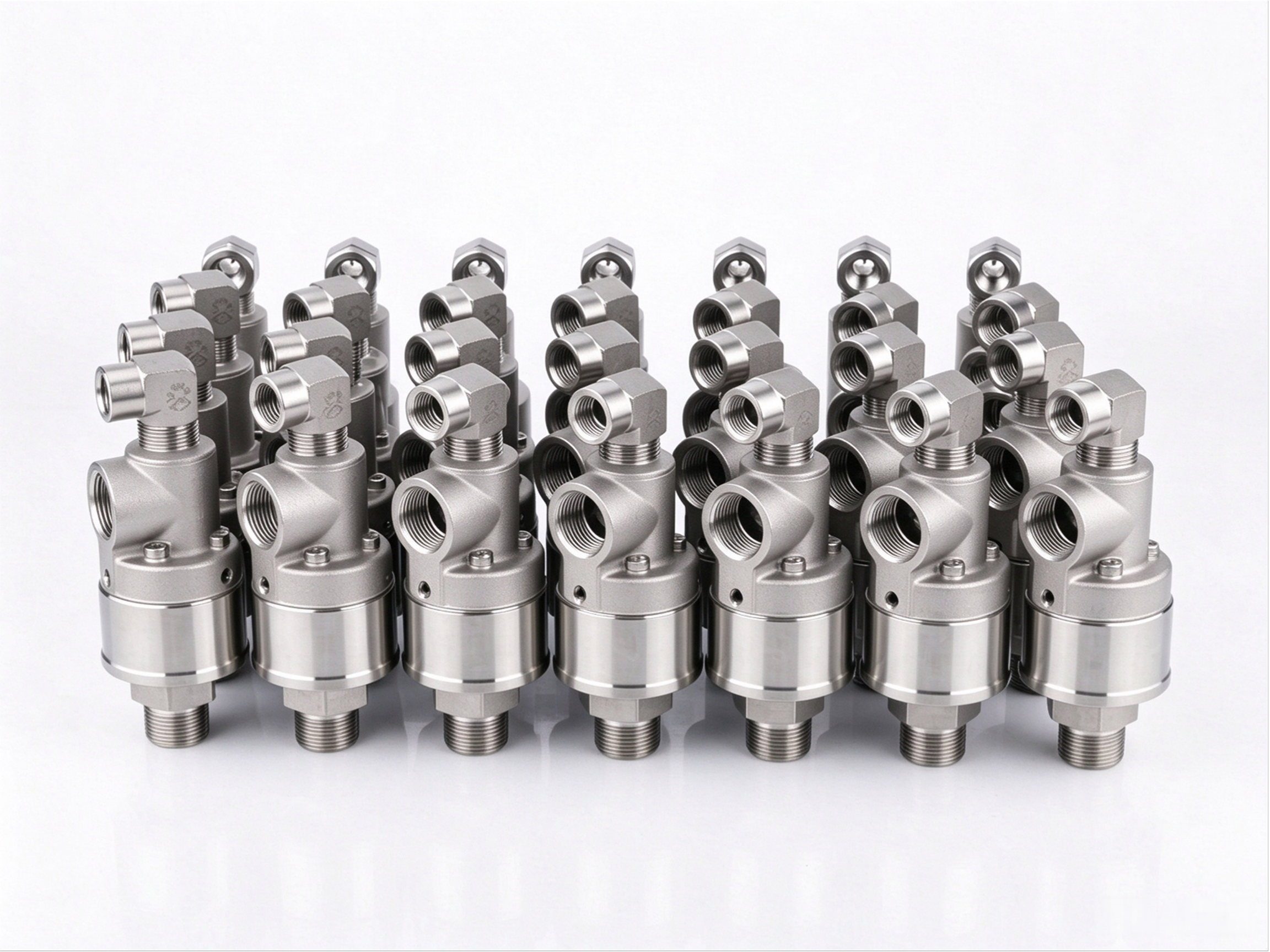

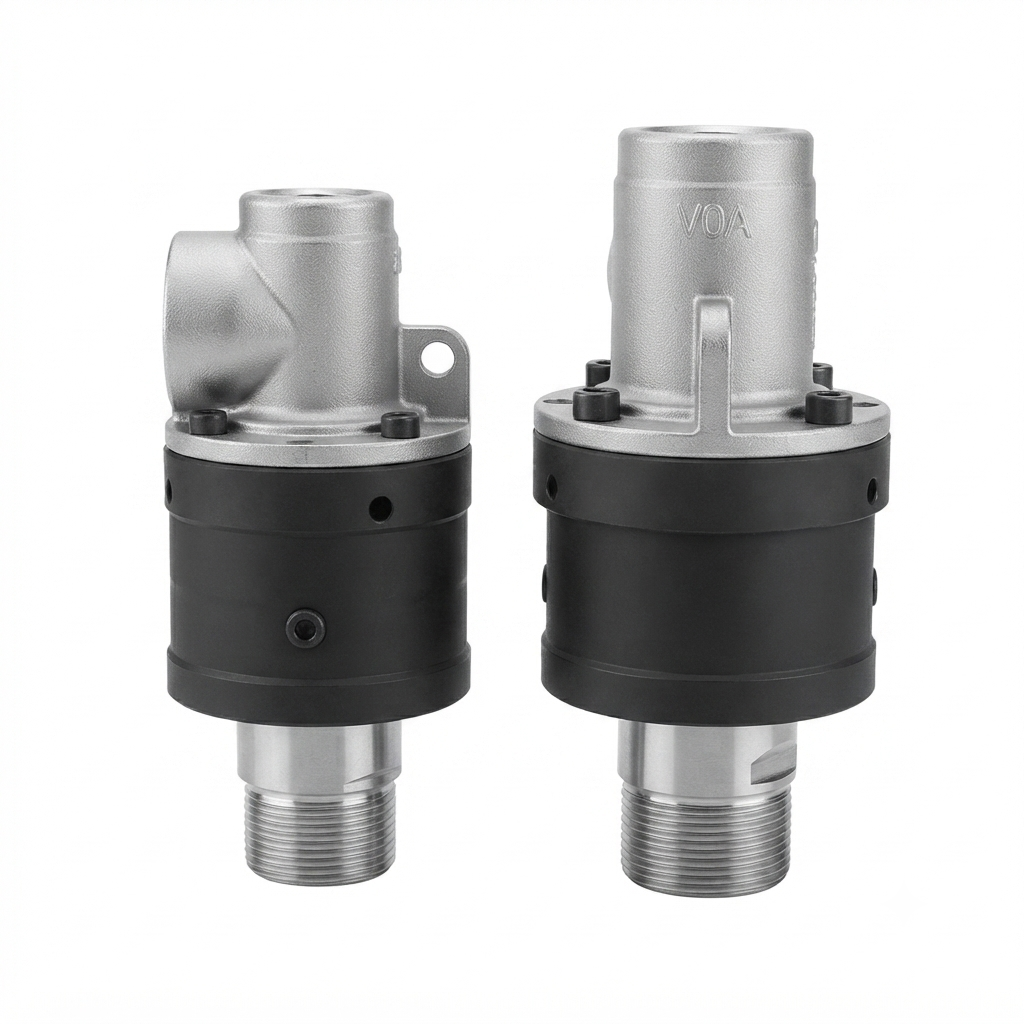

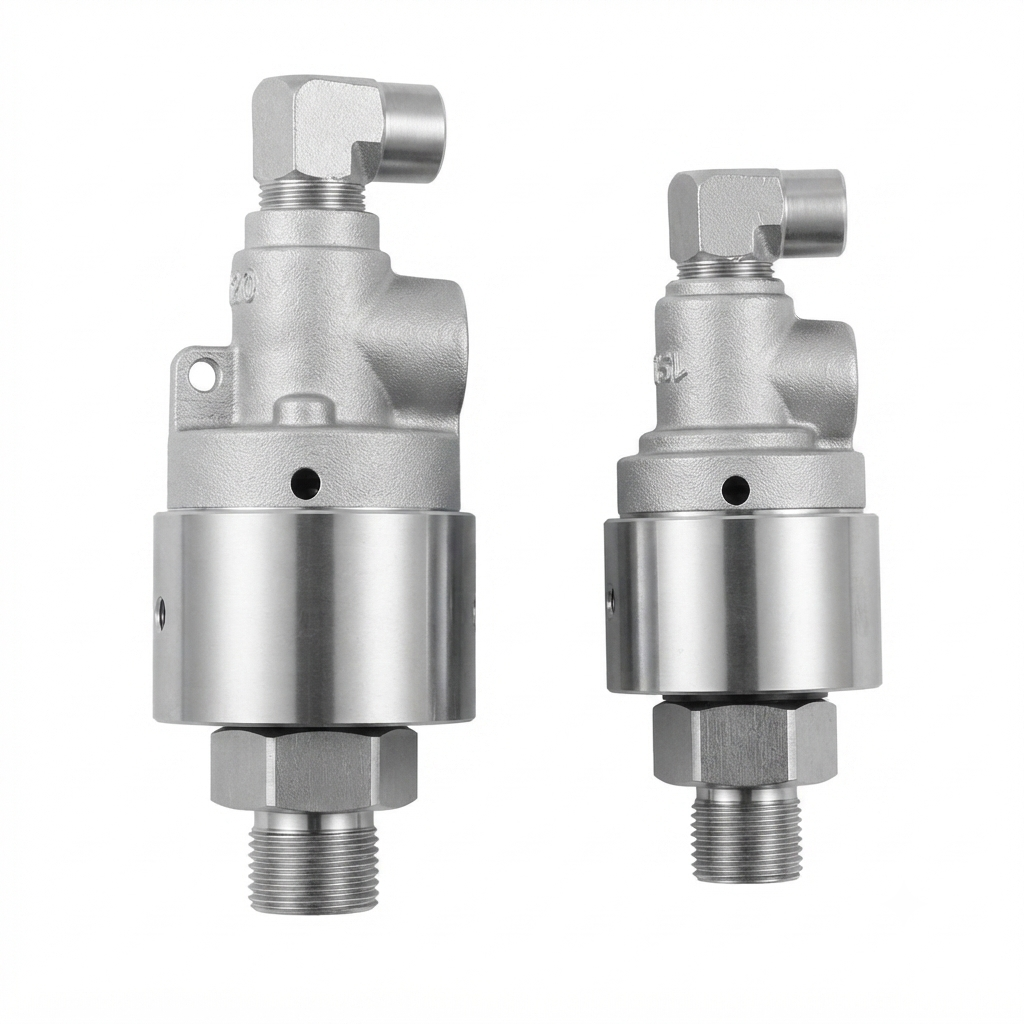

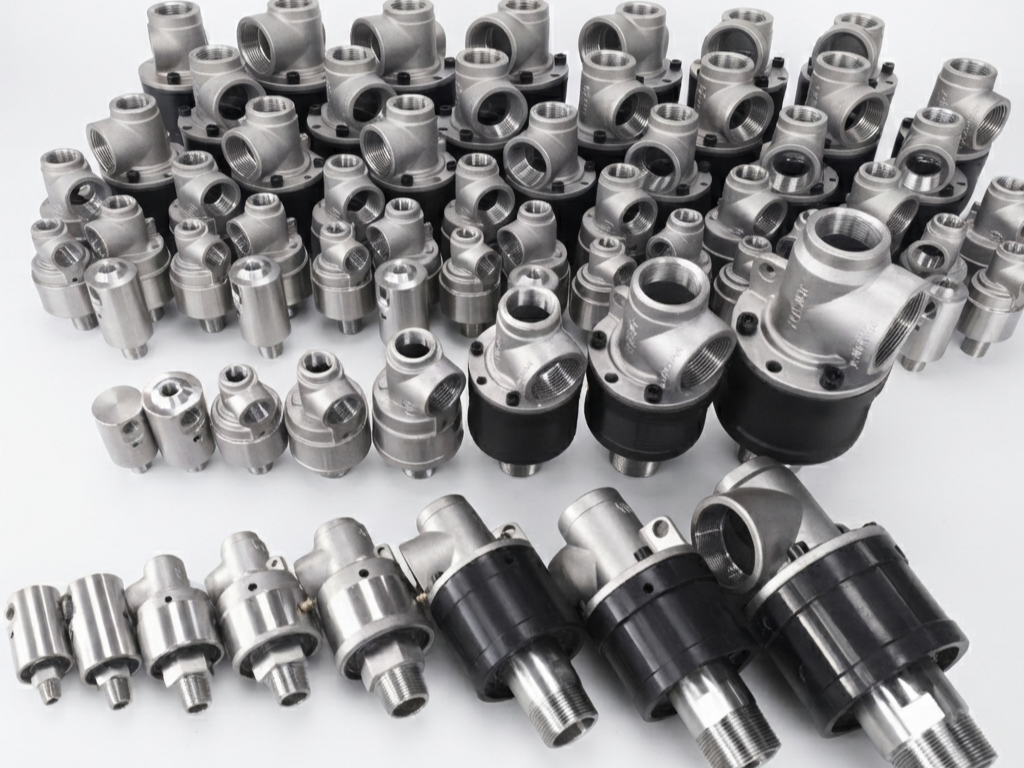

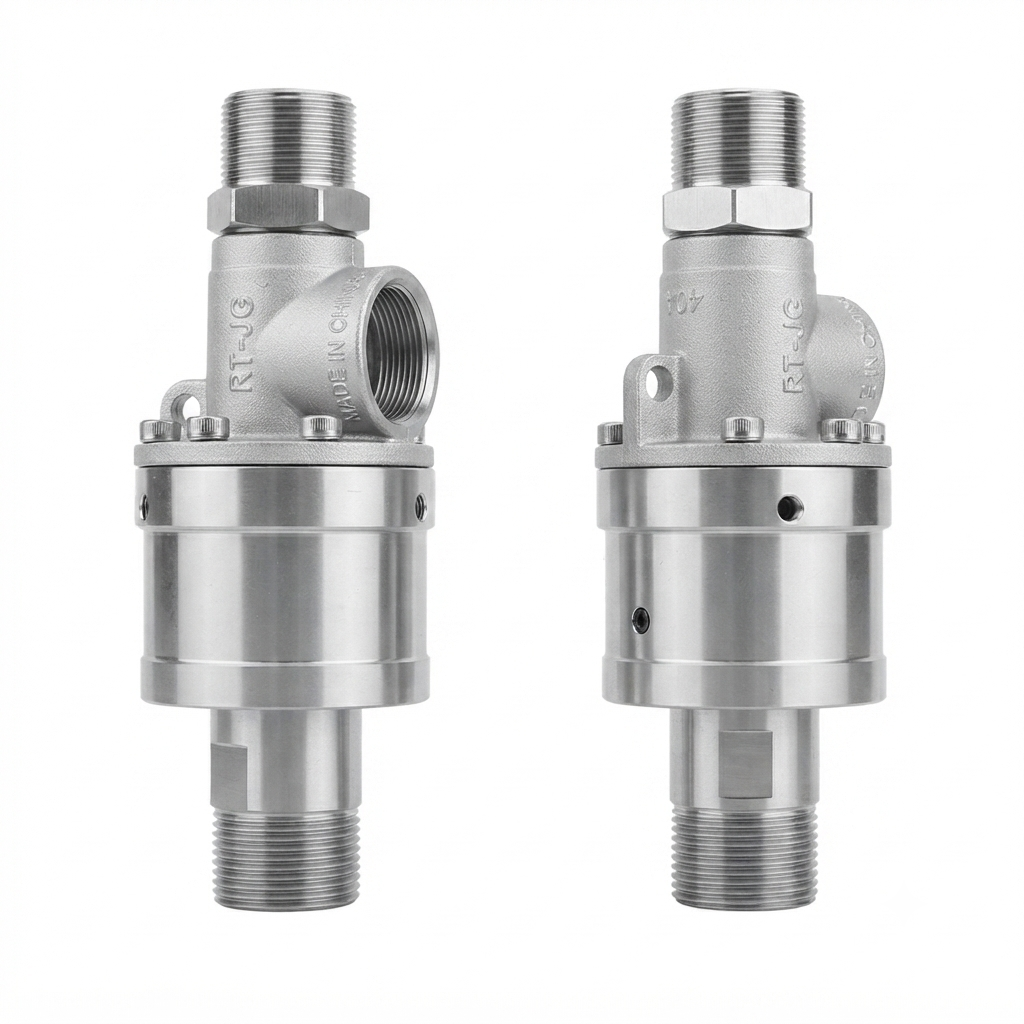

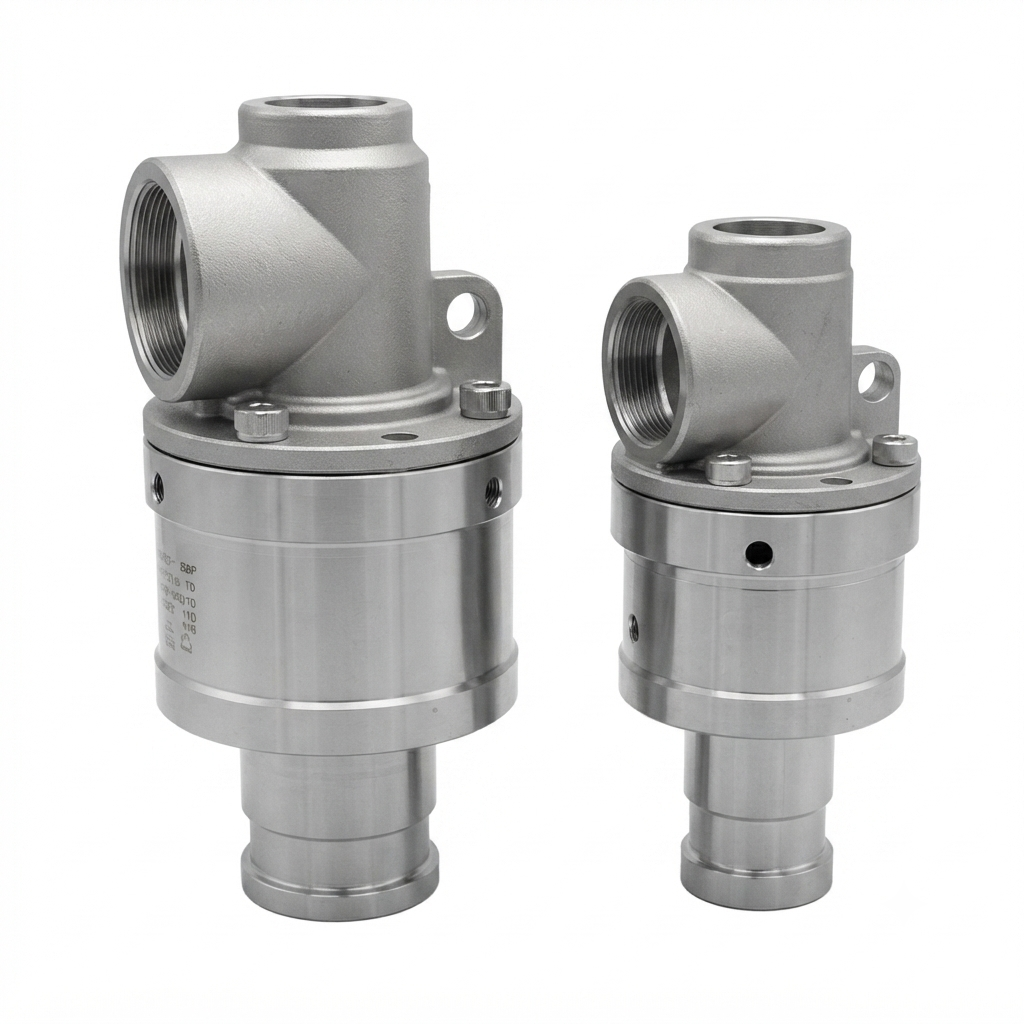

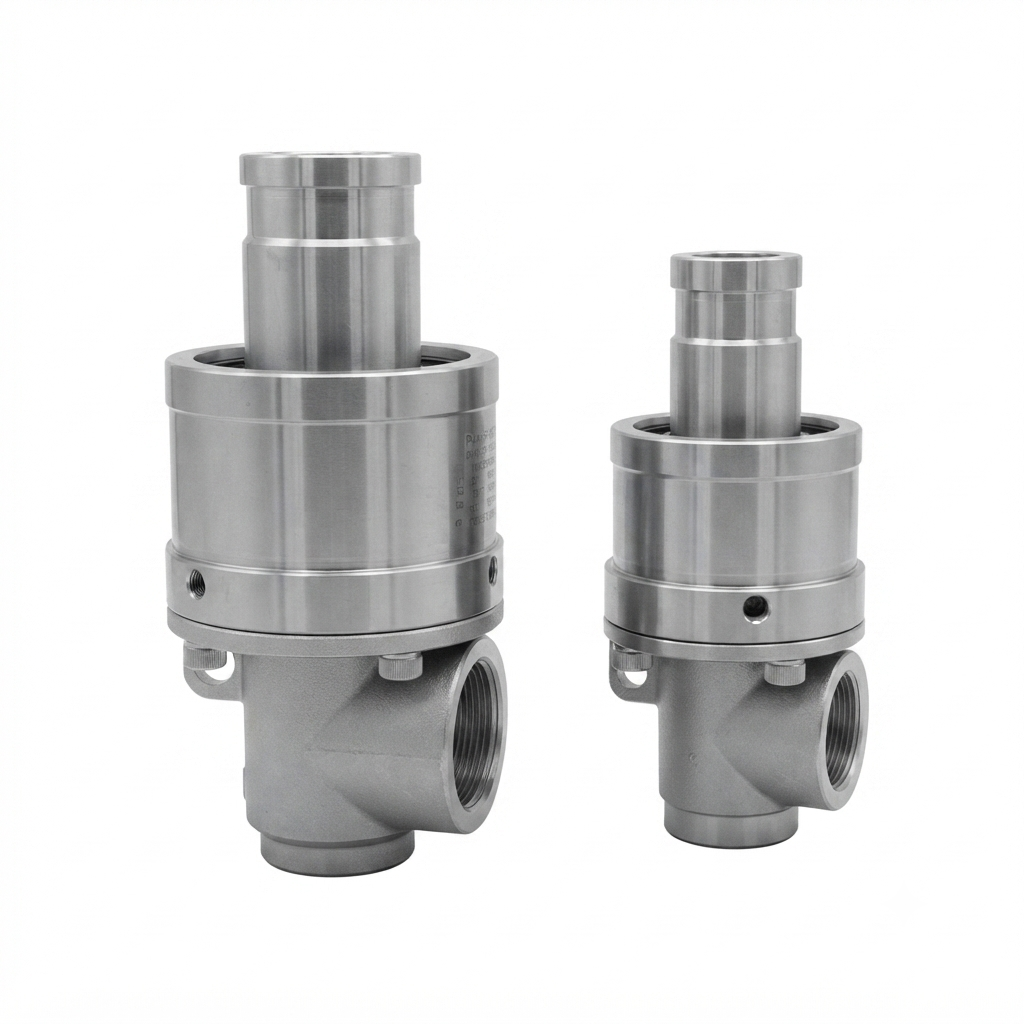

Product Gallery
Get in Touch
Send Us Your Drawing or Duty Conditions
Tell us the medium, temperature, pressure, speed and connection size. Our engineers reply with a selection or a custom proposal — usually within one working day.
