Can You Replace a BSP/G Thread Rotary Joint with a Deublin-Compatible NPT Thread Union Without Changing Machine Piping?

When servicing high-speed corrugated line rolls or paper mill cylinders, plant engineers often encounter a common headache: the original rotary union features a European BSP/G thread (Parallel), but the available Deublin-compatible replacement comes with an American NPT thread (Tapered).

The short answer is: No, you cannot directly screw a male NPT rotary joint into a female G-thread socket (or vice versa) without thread engagement issues or chronic fluid leakage.

However, you DO NOT need to cut or replace your existing machine piping. By using precise thread adapters or ordering customized Deublin-compatible rotary unions with native thread conversions, you can achieve a zero-leakage drop-in replacement in minutes.

Here is an engineering breakdown of why thread mismatches fail, and the two most reliable methods to solve it without altering your factory piping layout.

Understanding the Physics: Why G Threads and NPT Threads Do Not Mix

Although a 3/4” G thread and a 3/4” NPT thread appear visually similar to the naked eye, their sealing mechanics and pitch geometry are completely different.

       G Thread (BSP Parallel)                   NPT Thread (American Tapered)
      [ Straight Cylindrical Wall ]               [ 1° 47' Taper Angle ]
       ==========||==========                      =====\\==============
       Seals via: Flat washer/O-ring               Seals via: Metal-to-metal wedge
                  against shoulder.                          interference fit.

| Parameter | G Thread (BSPP / ISO 228) | NPT Thread (ANSI/ASME B1.20.1) | | Profile | Parallel / Straight | Tapered (1° 47’ angle) | | Thread Angle | 55° Whitworth | 60° American standard | | Sealing Method | Washer/Gasket against flat face | Thread root & crest deformation | | Interchangeability | Incompatible with NPT | Incompatible with G/BSP |

• What happens if you force them? A male NPT thread will only engage 1 to 2 turns into a female G socket before binding due to its taper. Forcing it with a wrench will strip the brass/cast iron threads or leave open paths along the flank angle, causing immediate thermal oil, steam, or water leakage.

Method 1: Use Precision Brass/Stainless Thread Adapters (Fastest Field Fix)

If you already have the NPT Deublin-style rotary union in hand and need to get the machine back online immediately, the simplest solution is installing a Conversion Adapter Fitting.

Adapter Setup Requirement:

1. Machine Side Connection: Male G-thread with a copper or Viton sealing washer seated flush against the female port’s shoulder.
2. Rotary Union Side Connection: Female NPT matching the male NPT thread of your Deublin-compatible rotary joint. Use PTFE tape or high-temperature thread sealant on the NPT side.

• Pros: Zero modifications to existing pipework; off-the-shelf component.
• Cons: Adds 25–40 mm of extra overhang length to the rotary joint, which may increase cantilever vibration on high-RPM spindles.

Method 2: Custom Drop-In Replacement with Native Threads (Recommended Best Practice)

The cleanest and most reliable approach is sourcing a direct-fit replacement rotary union manufactured with the exact thread profile you need—combining Deublin internal sealing performance with your machine’s native G-thread connection.

Custom OEMs like Ruitus modify the rotor connection end directly during CNC lathe machining. Rather than using external adapters, the rotor is cut to match:

• Custom NPT Teeth: 3/4"-14 NPT, 1"-11.5 NPT, etc.
• Custom G/BSPT Teeth: G 1/2", G 3/4", G 1", or BSPT tapered.
• Direction of Rotation: Left-Hand (LH) or Right-Hand (RH) to prevent unscrewing under operation.

Checklist Before Purchasing a Replacement Rotary Union

Before placing an order for a replacement joint, confirm these 4 technical dimensions with your engineering team to avoid field fitting delays:

1. Rotor Thread Standard & Gender: Male or Female? G/BSPP, NPT, or BSPT?
2. Rotor Rotation: Clockwise (requires Left-Hand Thread) or Counter-Clockwise (requires Right-Hand Thread)?
3. Seal Face Material Match: Silicon Carbide (SiC) vs. Carbon Graphite for thermal oil/steam up to 160°C.
4. Overall Length & Drop Distance: Ensure the centerline distance from the inlet port to the rotor face matches your existing space envelope.

Technical Support & Direct-Fit Sourcing

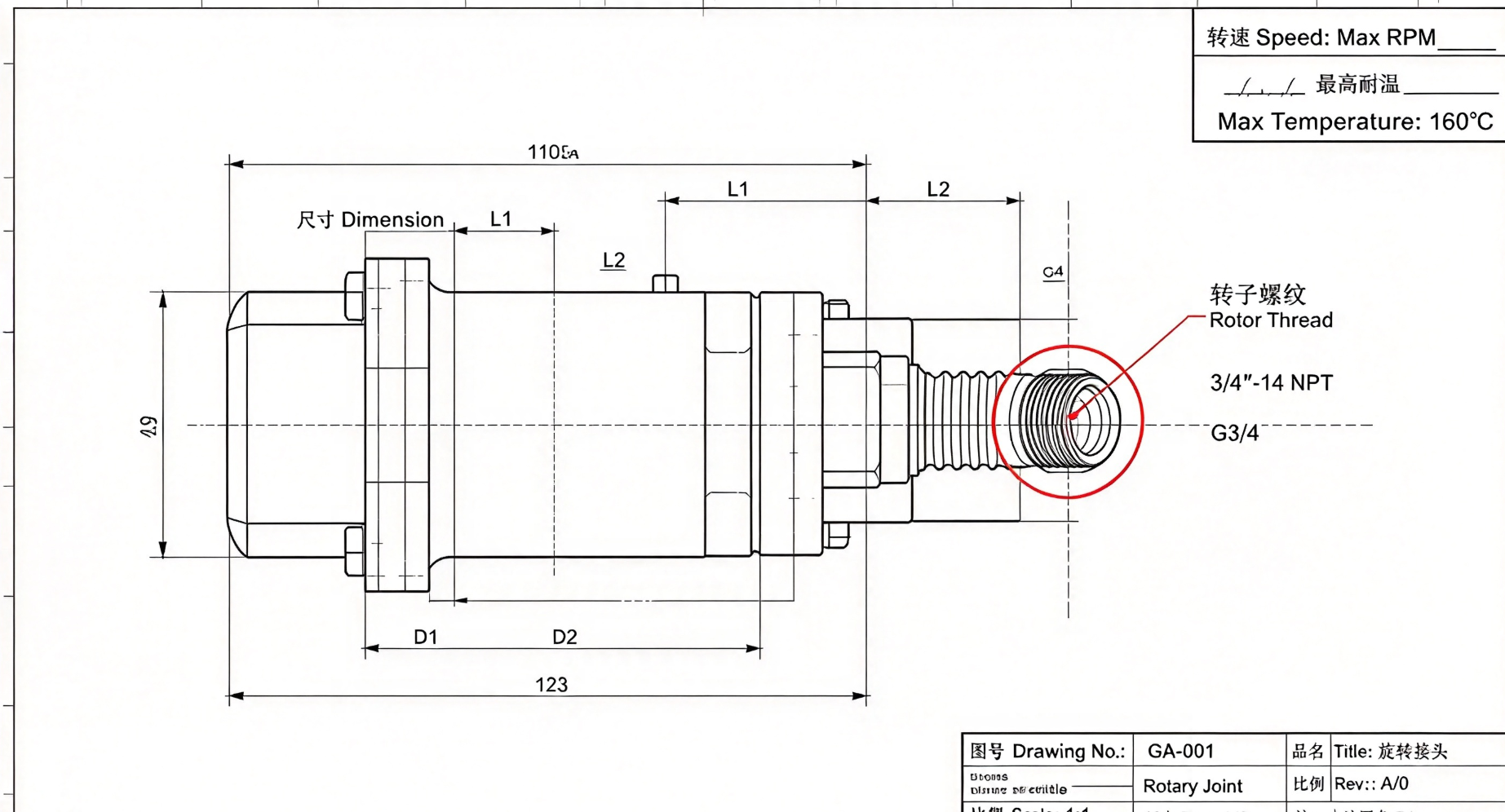

At Xuzhou Ruitus Import & Export Co., Ltd. (XCMG Authorized Manufacturer), we build Deublin-compatible rotary joints tailored to your exact machine thread specifications. Whether you require native NPT threads, European G threads, or special BSPT connections, we provide certified GA outline drawings for sign-off prior to production.

• Fast Lead Time: 7-day dispatch on custom thread configurations.
• Quality Assurance: 100% factory pressure tested with 6-month warranty coverage.

Have a thread dimension question or need a drawing review?

Send your technical parameters or photos to our engineering support team for a free compatibility assessment today.
