How to Find a Cost-Effective Alternative to Deublin Rotary Unions for Paper and Corrugated Box Machinery

Replacing a original equipment manufacturer (OEM) rotary union like Deublin on high-speed corrugated line or paper drying cylinder shouldn’t mean taking risks on premature sealing failure or machine downtime.

While Deublin rotary joints are recognized for quality, their long lead times, premium price markups, and rigid standard sizing often create unnecessary operational bottlenecks. Finding an equivalent or superior alternative requires matching exact engineering parameters—specifically thread standards, seal face metallurgical pairings, and housing heat dissipation.

Here is a practical, step-by-step engineering guide to sourcing a reliable, high-performance replacement for Deublin rotary unions in paper and corrugated board production.

Step 1: Verify Thread Geometry and Pitch Standards

The most common point of failure when switching from a Deublin joint is thread mismatch. Deublin utilizes both European BSP/G parallel threads and American NPT tapered threads across their standard catalog.

• NPT (National Pipe Taper): Creates a seal via thread interference. Commonly seen on American-made machinery or customized Deublin series (e.g., 3/4"-14 NPT or 1"-11.5 NPT).
• BSP / G (Parallel Thread): Relies on a sealing washer or O-ring against a flat shoulder rather than thread deformation.
• Hand of Thread (LH vs. RH): Always confirm thread rotation. Left-hand (LH) threads are used on rotors spinning clockwise to prevent self-loosening during line acceleration.

Step 2: Match Seal Face Materials to Operating Media

Paper machines and corrugated single-facers subject rotary unions to extreme thermal cycling and media contamination. Replacing Deublin requires matching or upgrading the seal face material pairing based on your exact working conditions:

| Working Condition | Media / Temp | Recommended Seal Face Pairing | Key Advantage | | Corrugated Single Facer | Thermal Oil / Steam (up to 160°C - 200°C) | Silicon Carbide (SiC) vs. Antimony-Impregnated Carbon | High thermal conductivity; prevents heat-checking and dry friction under high temperature. | | Recycled Water / High Debris | Contaminated Cooling Water | Silicon Carbide (SiC) vs. Silicon Carbide (SiC) | Extreme hardness; resists abrasion from iron filings and paper pulp particles. | | High-Speed Printing / Converting | Clean Water / Light Oil | Silicon Carbide (SiC) vs. Resin-Bonded Carbon Graphite | Excellent self-lubrication with low drag torque for energy efficiency. |

Step 3: Check Lubrication & Housing Design for Continuous Duty

Corrugated board production lines often run 24/7. Deublin alternatives must feature robust bearing housing designs to prevent pre-mature wear from heat radiation off steam chests or pre-conditioner rolls.

Look for alternatives that offer:

1. External Grease Nipples (Grease Fittings): Allows maintenance engineers to purge old lubricant and replenish high-temperature synthetic grease during scheduled maintenance without dismantling the unit.
2. Dual Heavy-Duty Bearings: Deep groove ball bearings or angular contact bearings isolated from media exposure by secondary lip seals.
3. Brass or Stainless Steel Housings: Provides superior corrosion resistance against condensate acid buildup compared to standard cast iron housings.

Step 4: Demand Certified GA Drawings and Sample Testing Policies

To eliminate trade risks when switching suppliers, reputable manufacturers should provide a structured qualification process:

1. GA (General Arrangement) Drawing Sign-Off: Before production, the supplier must issue a dimensional drawing showing overall length, rotor drop, center-to-center port distances, and thread callouts for your engineering team to sign off.
2. Factory Pressure & Hydrostatic Testing: Ensure every unit is 100% factory-tested for torque stability and zero leakage before shipment.
3. Sample Cost Rebate Program: Reliable OEMs often offer 100% sample cost crediting toward your first full batch order (e.g., MOQ ≥ 20 units), reducing your initial evaluation cost.

Quick Cross-Reference Checklist Before Ordering a Deublin Alternative

When contacting a custom manufacturer for a quotation, have these 5 parameters ready:

• Original Deublin Model Code: (e.g., 55 Series, 57 Series, 357 Series)
• Rotor Connection Standard: (NPT, BSP, or Flanged; Left-Hand or Right-Hand)
• Max Operating Temperature & Pressure: (e.g., 160°C, 10 bar)
• Operating Media: (Steam, Thermal Oil, Water, Coolant)
• Rotational Speed (RPM): (e.g., 250 RPM)

Technical Support & Custom Sourcing

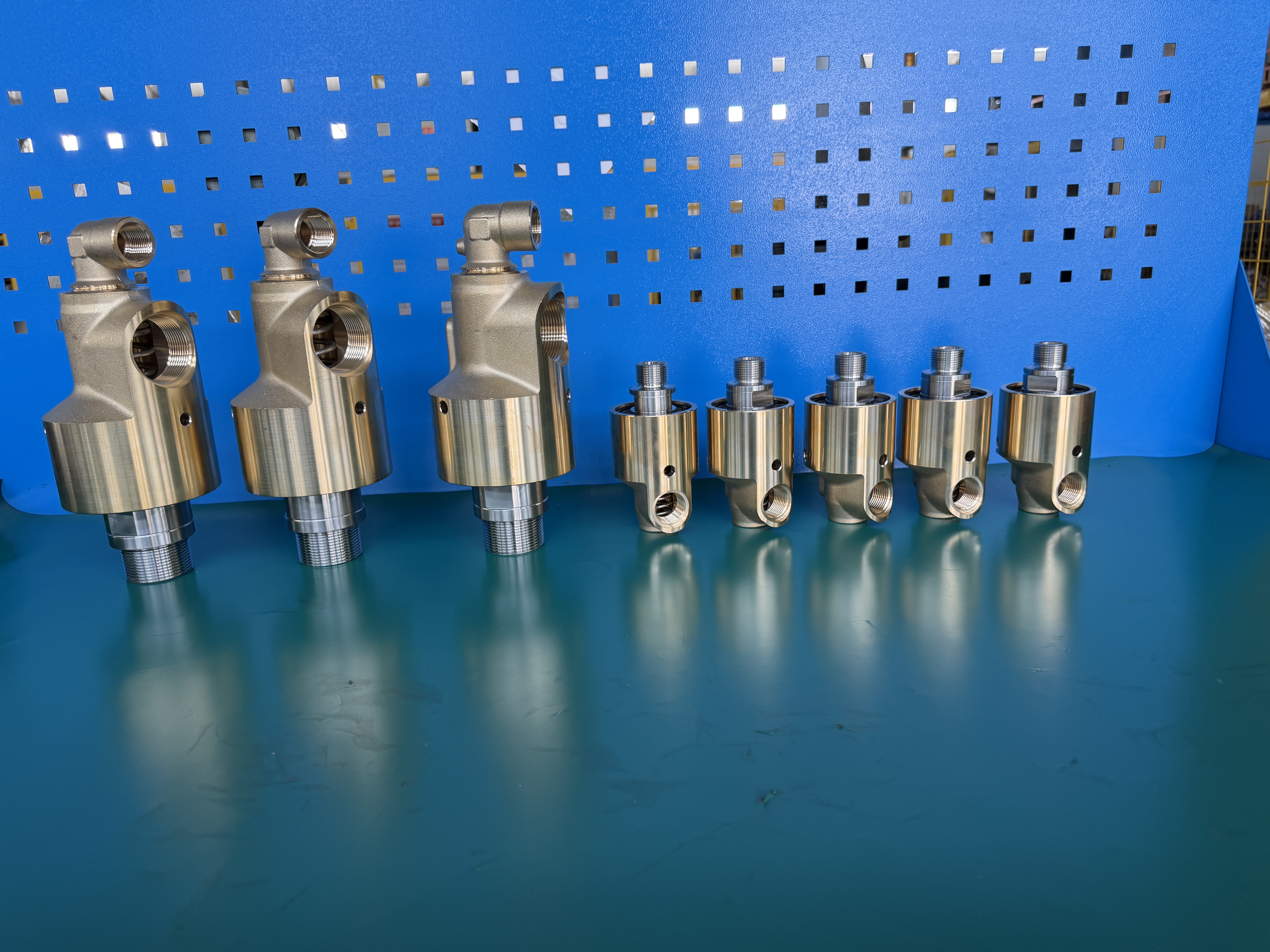

At Xuzhou Ruitus Import & Export Co., Ltd. (XCMG Authorized Manufacturer), we engineer direct-fit, Deublin-compatible rotary unions customized for corrugated box lines and paper machinery. Featuring 7-day fast dispatch on standard models, precision-lapped SiC/Carbon seals, and complete GA drawing sign-offs, we ensure seamless drop-in replacement with 6-month warranty protection.

Need a cross-reference drawing or custom thread quotation?

Contact our engineering support team with your working conditions or Deublin part numbers today.
