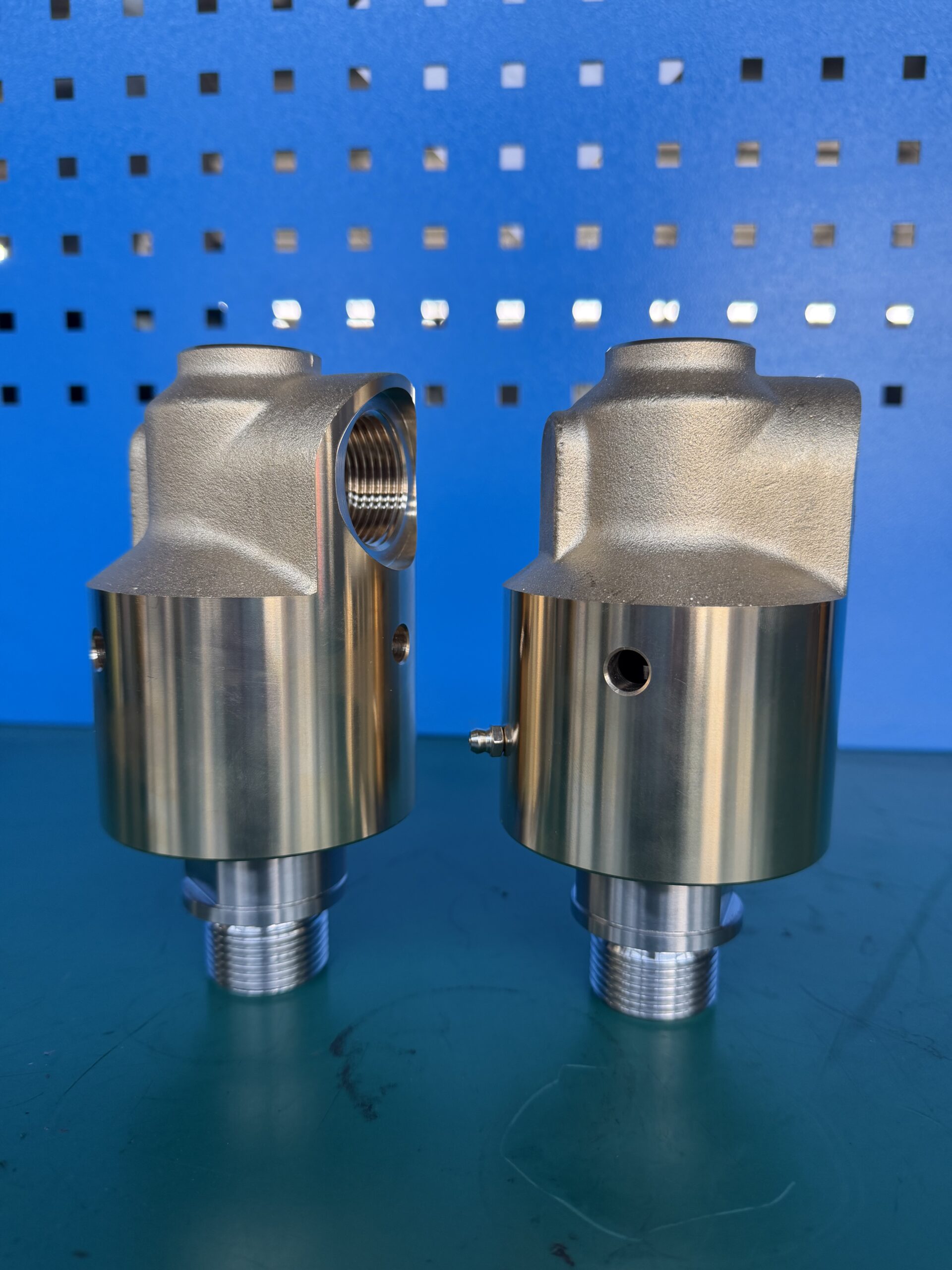

RT-DE Series Rotary Joint for Water/Coolant (Interchangeable with 55-57 Series)

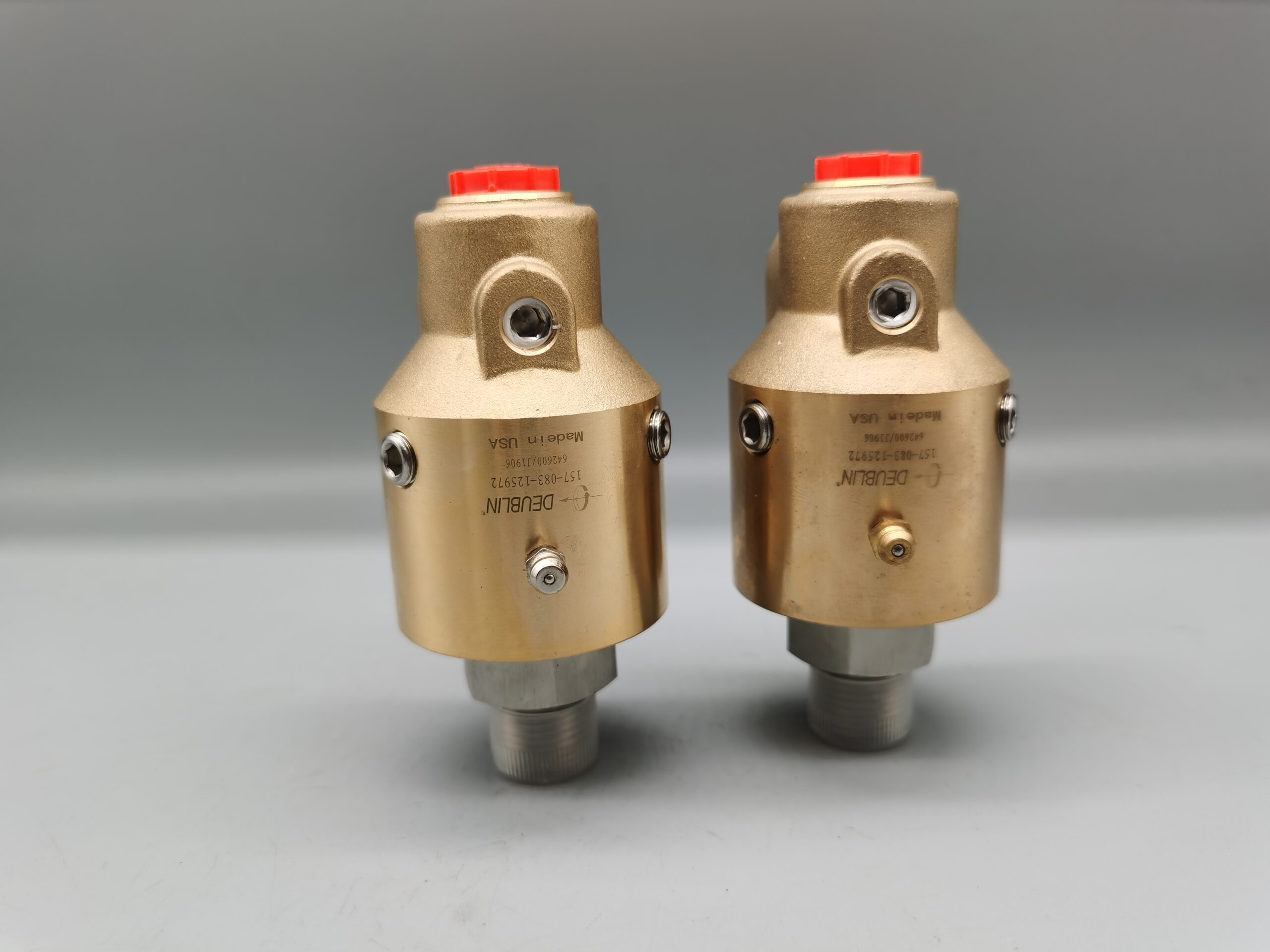

RT-DE Series Rotary Joint for Water/Coolant (Interchangeable with 55-57 Series) - 图片 2

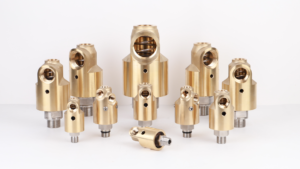

RT-DE Series Rotary Joint for Water/Coolant (Interchangeable with 55-57 Series) - 图片 3

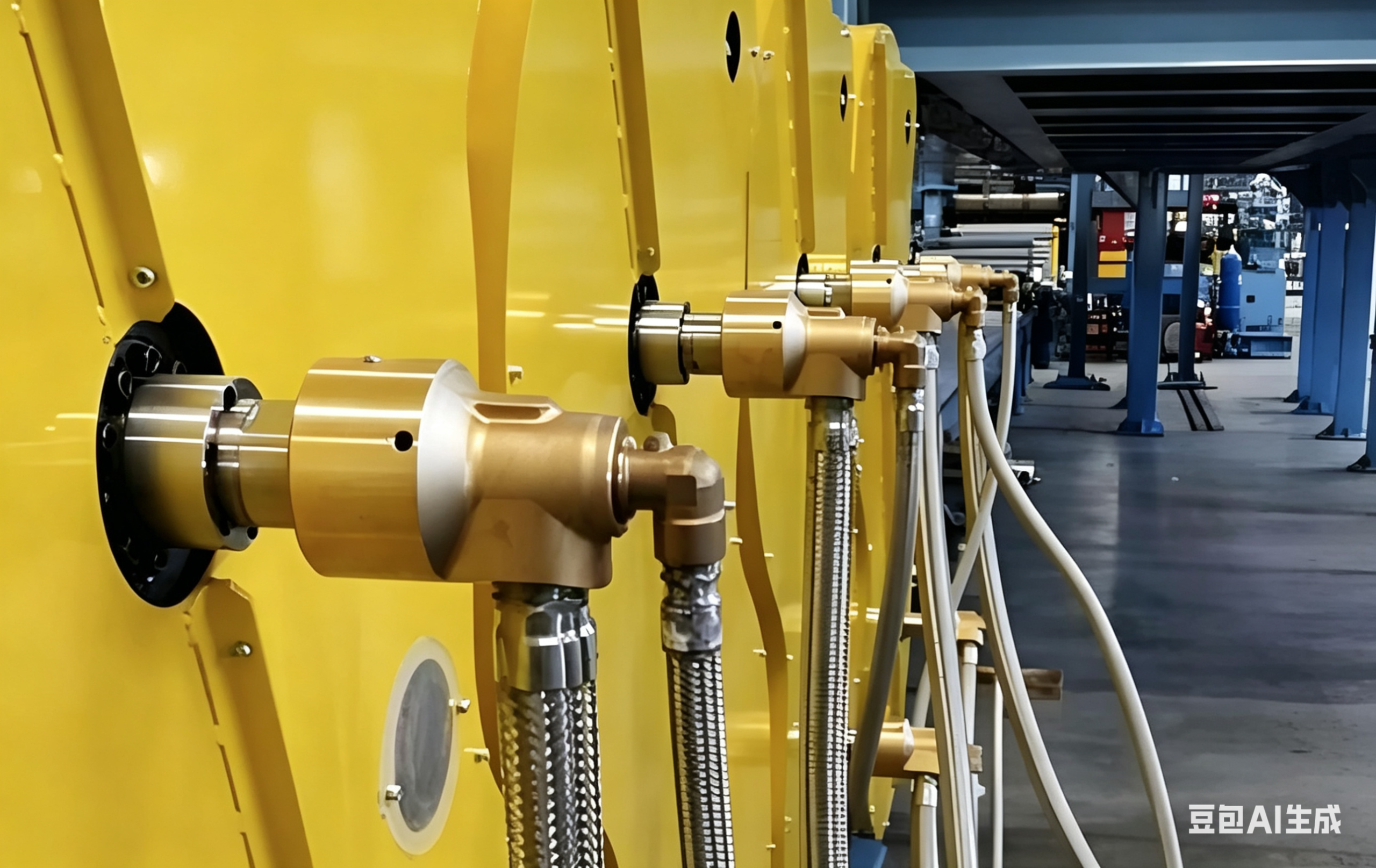

RT-DE Series Rotary Joint for Water/Coolant (Interchangeable with 55-57 Series) - 图片 4

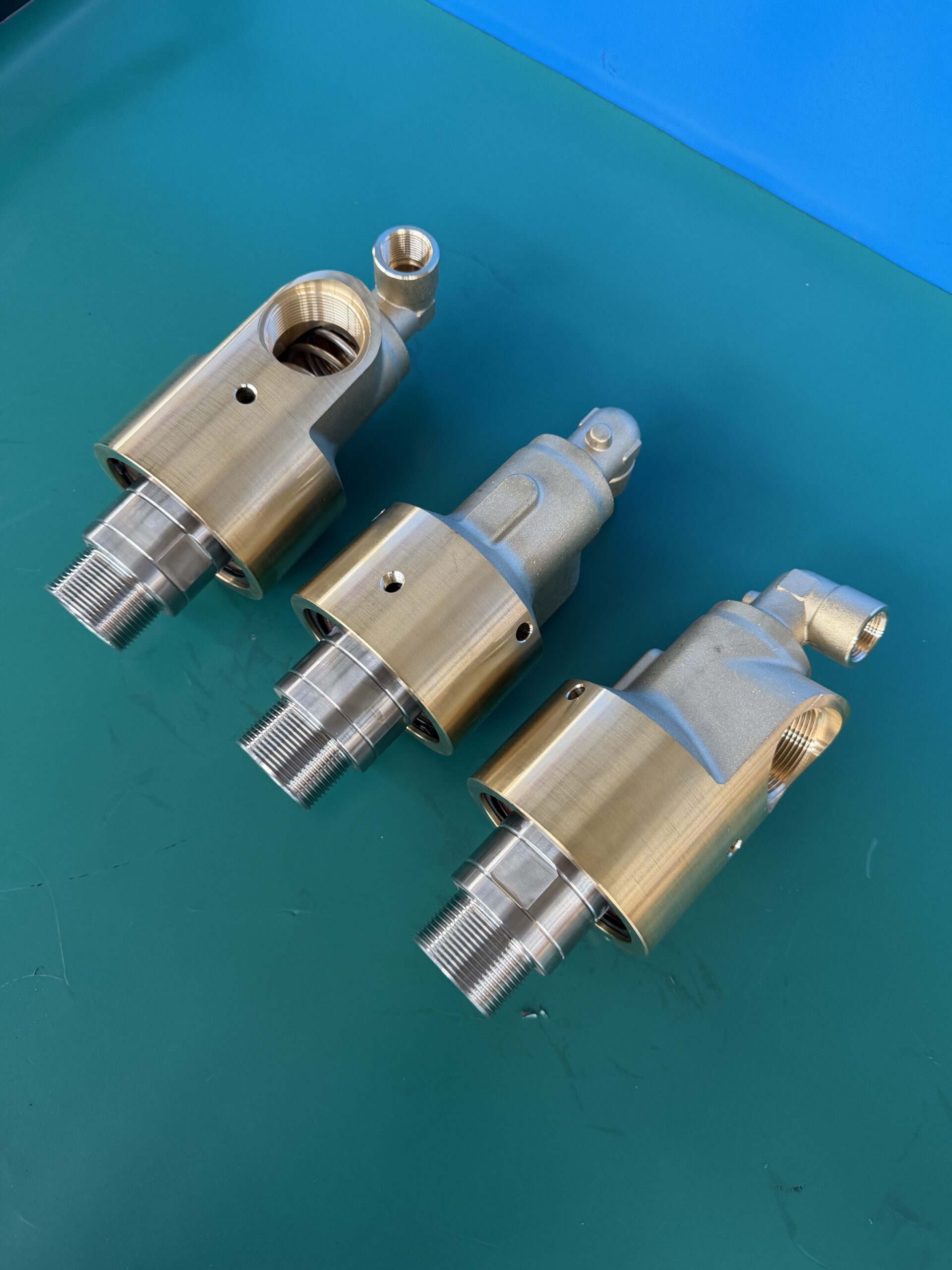

RT-DE Series Rotary Joint for Water/Coolant (Interchangeable with 55-57 Series) - 图片 5

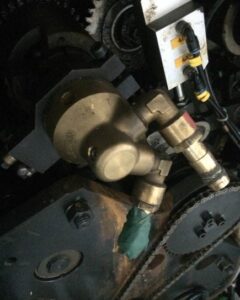

RT-DE Series Rotary Joint for Water/Coolant (Interchangeable with 55-57 Series) - 图片 6

RT-DE Series Rotary Joint for Water/Coolant (Interchangeable with 55-57 Series)

Operating Conditions:

  • Water Pressure: 1.6 MPa

  • Saturated Steam Pressure (Intermittent): 1.5 MPa

  • Speed (NPT Threads): 5,500 rpm

  • Speed (Straight Threads): 5,500 rpm

  • Max Temperature: 120°C

分类：

描述

Structural Features:
  • Applicable Media: Coolant, hot water, cold water, oil, compressed air, low-pressure steam
  • Design Options: Single-passage and dual-passage designs available
  • Support Type: Self-supported or bearing-supported rotary joint
  • Seal Type: Balanced mechanical seal
  • Drain Ports: 3 drain ports
  • Housing Material: Forged brass housing
  • Rotor Material: Stainless steel rotor
Special Options:
  • Threaded-connection drain ports with low-torque design
  • Silicon carbide (SiC) balanced mechanical seal
