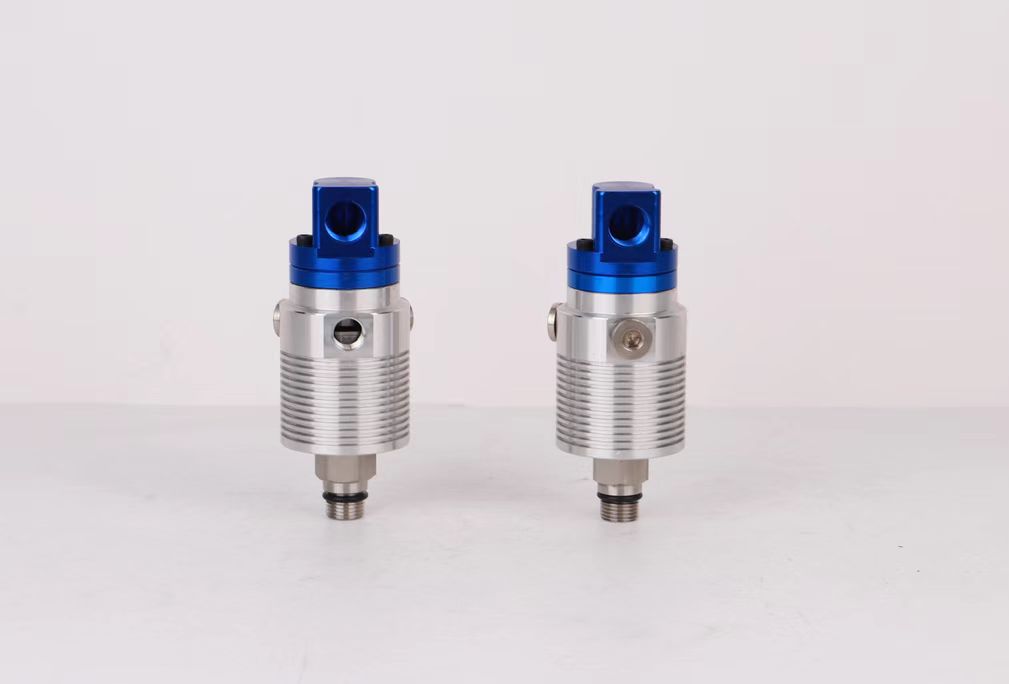

High-Speed Rotary Joint with Through-Spindle Coolant for CNC Machine Centers

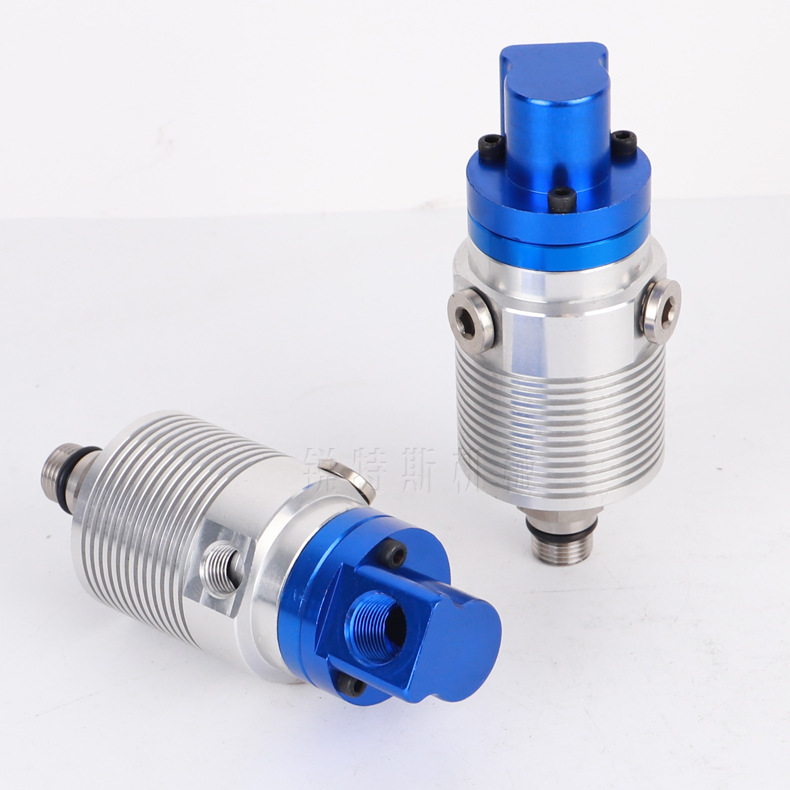

High-Speed Rotary Joint with Through-Spindle Coolant for CNC Machine Centers - 图片 2

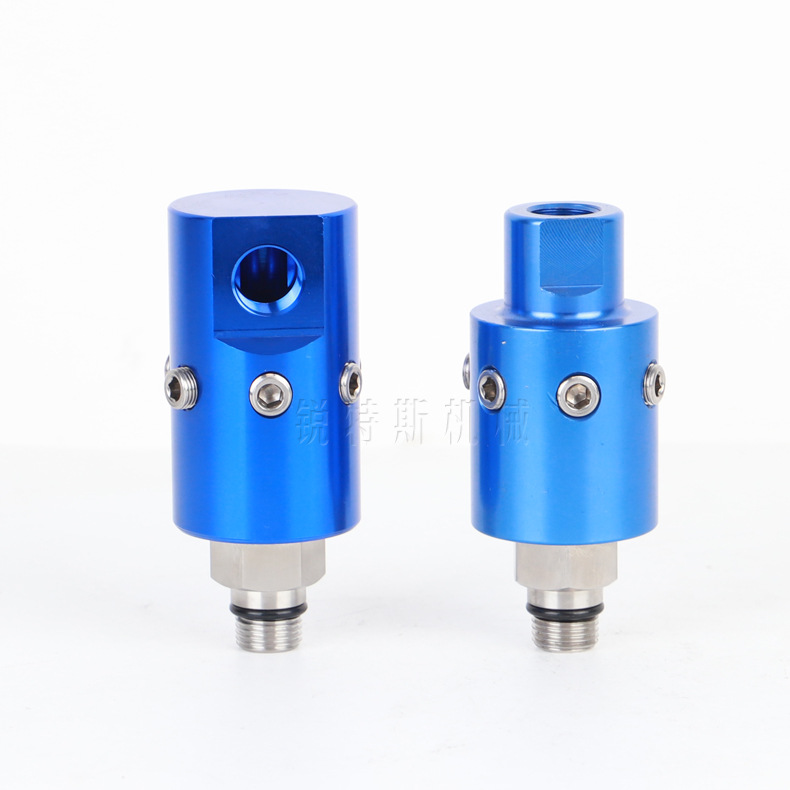

High-Speed Rotary Joint with Through-Spindle Coolant for CNC Machine Centers - 图片 3

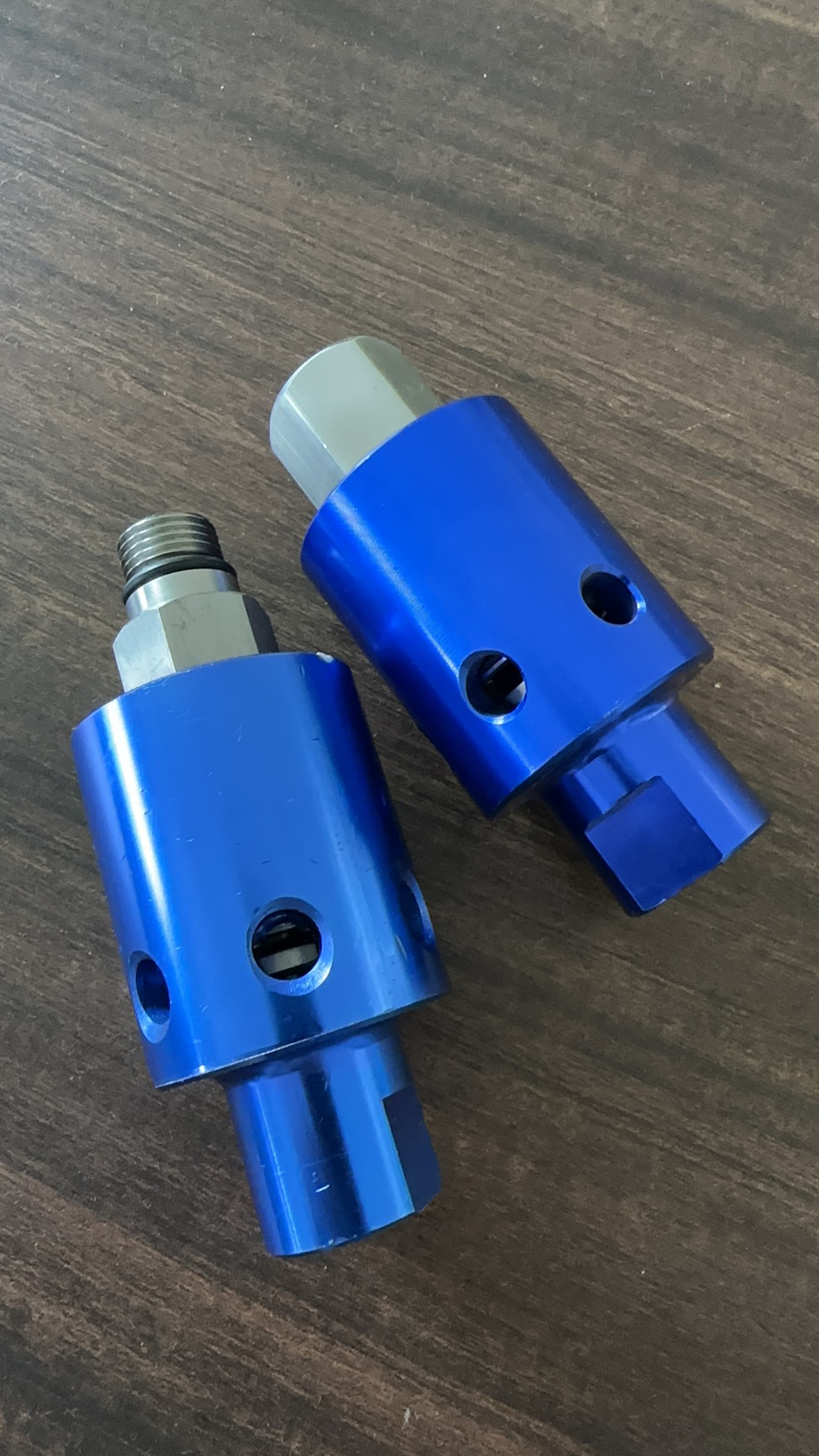

High-Speed Rotary Joint with Through-Spindle Coolant for CNC Machine Centers - 图片 4

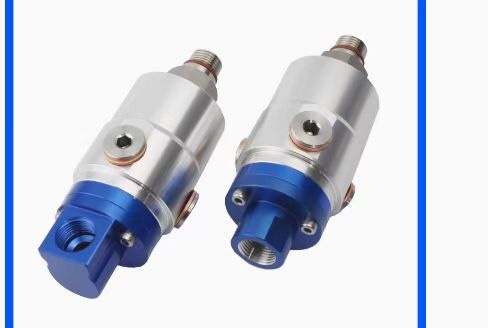

High-Speed Rotary Joint with Through-Spindle Coolant for CNC Machine Centers - 图片 5

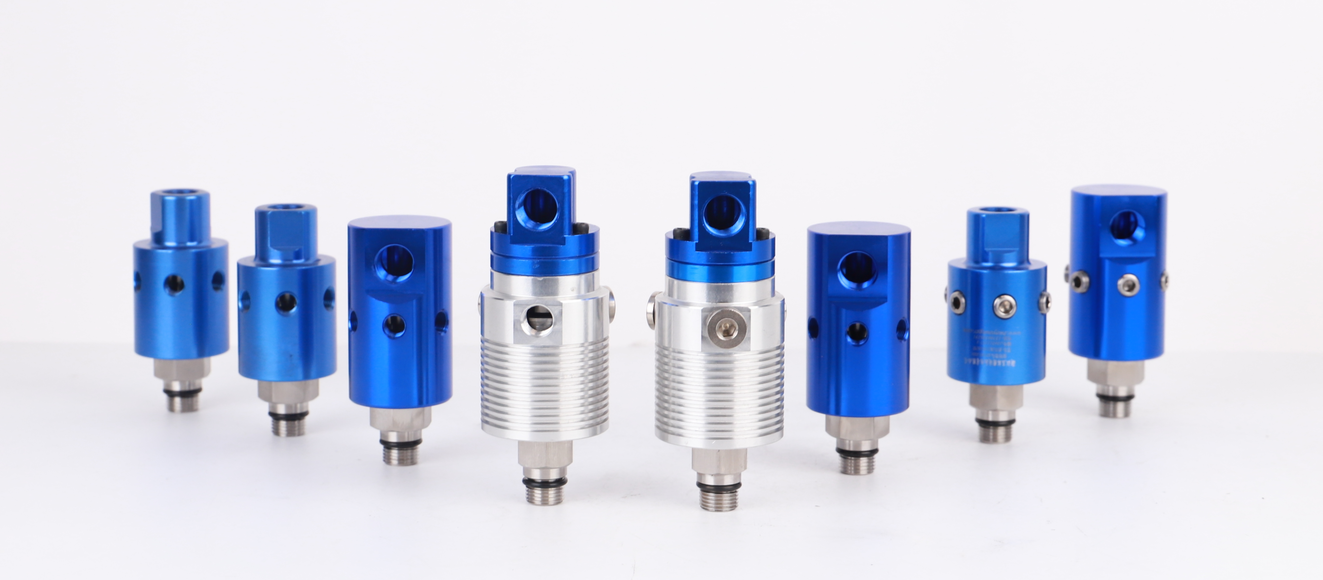

High-Speed Rotary Joint with Through-Spindle Coolant for CNC Machine Centers - 图片 6

High-Speed Rotary Joint with Through-Spindle Coolant for CNC Machine Centers

Operating Conditions:

  • Pressure: 10 MPa

  • Water-based Coolant: 10 MPa

  • MQL (Oil Mist) Max Speed: 10,000 rpm

  • Max Temperature: 100°C

分类：

描述

Structural Features:

  • Single-passage for coolant or MQL (Minimum Quantity Lubrication)

  • Closed seal design, suitable for automated production line applications

  • Full-flow design prevents clogging from debris and burrs

  • Bearing-supported design with threaded rotor for easy installation

  • Deep groove ball bearings ensure smooth operation

  • Labyrinth system and large leakage port designed to protect the ball bearings

  • Balanced mechanical seal made of silicon carbide (SiC)

  • Guarantees extended service life even under demanding operating environments

  • Corrosion-resistant anodized aluminum housing
