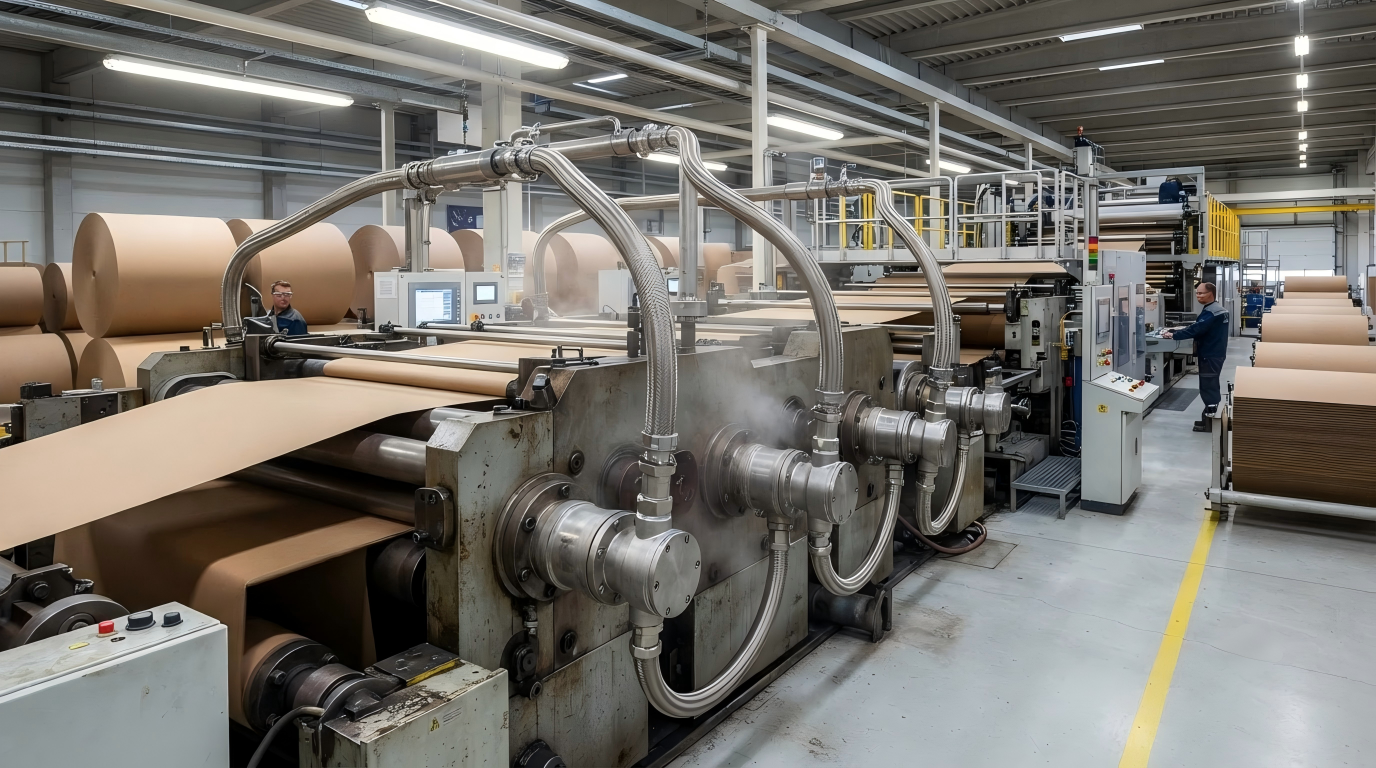

In corrugated cardboard production lines, corrugated rollers and preheater cylinders are core high-temperature heating components. To transport high-temperature and high-pressure steam into the interior of the rotating rollers, the Steam Rotary Joint plays a vital role.

However, operating under harsh conditions characterized by high temperatures, high speeds, frequent forward/reverse rotations, and pipeline thermal stress, steam rotary joints are prone to leakage issues. This not only causes energy waste and deteriorates workshop conditions but also triggers bearing burnouts and unexpected machine downtime, severely impacting enterprise production efficiency.

This article provides an in-depth analysis of the common causes of steam rotary joint leakage in corrugated machines and offers effective solutions.

I. Four Common Causes of Steam Rotary Joint Leakage

1. Abnormal Wear and Thermal Cracking of Mechanical Seal Faces

• Cause Analysis: Steam rotary joints rely on the tight fit of mating faces between the rotating ring and stationary ring (typically made of antimony-impregnated carbon graphite, silicon carbide, etc.) to prevent leakage. If impurities or rust are mixed in the steam, or if “dry running” occurs (without medium lubrication), the sealing faces will wear rapidly. Furthermore, thermal shock from sudden temperature changes can cause thermal cracks on the sealing faces.

2. Pipeline Thermal Stress and Concentricity Deviation

• Cause Analysis: High-temperature steam pipelines expand when heated. If the pipeline connections are too rigid during installation or lack metal hoses (flexible connections), the weight and thermal stress of the pipeline will apply directly onto the rotary joint, causing eccentric wear inside the joint and subsequent leakage.

3. Bearing Failure Leading to Axial Runout

• Cause Analysis: If internal bearings fail or get water-damaged due to high-temperature grease breakdown, the rotating shaft will experience radial or axial wobbling. Once the shaft wobbles, the contact state of the sealing rings is compromised, causing instant steam leakage.

4. Seal Material Mismatch with Working Medium/Temperature

• Cause Analysis: Steam temperatures in corrugated machines typically range from 150°C to 200°C or higher. Using seal rings with inadequate temperature ratings (such as ordinary rubber materials) will lead to rapid aging, hardening, and loss of elasticity.

II. Practical Countermeasures for Leakage Prevention

1. Adopt Flexible Connections to Release Stress: Between the rotary joint and rigid pipes, metal hoses (flex hoses) must be installed. Direct rigid connections are strictly prohibited to absorb displacement and stress generated by pipeline thermal expansion and contraction.

2. Ensure Steam Quality (Install Filters): Install high-efficiency filters and steam traps before the rotary joint inlet to ensure dry, impurity-free steam without condensate accumulation, preventing “water hammer” impacts on the sealing faces.

3. Choose High-Wear-Resistant, Self-Lubricating Seal Materials: For high-temperature steam conditions in corrugated machines, prioritize antimony-impregnated carbon graphite paired with silicon carbide or high-precision balanced-load sealing structures to lower the friction coefficient and extend service life.

4. Regular Inspection and Preventive Maintenance: Establish equipment routine check routines. Listen for abnormal noises during high-speed rotation and observe micro-steam leakage, replacing sealing components promptly to avoid escalation into downtime accidents.

RUITUS Industrial Rotary Joints — Product Technical Specifications & Multi-Medium Adaptation Solutions

As an original source manufacturing factory, we specialize in providing high-reliability, long-life rotary joints and direct-replacement solutions for global corrugated packaging machinery and industrial manufacturing. Below are our standard product technical parameters and medium adaptation solutions:

1. Core Technical Parameter Overview

Technical Indicator	Parameter Range / Specification Details
Max Working Pressure	Up to 10.0 MPa (100 bar)
Max Working Speed	Water/Air media up to 10,000 RPM; Steam/High-temp oil optimized by port size
Max Temperature	Up to 350°C (Specialized series for high-temp thermal oil and high-temp steam)
Size Range	3/8″ to 4″ (Custom ultra-large diameters and non-standard flanged/threaded interfaces supported)
Structural Features	Balanced seal design, high-precision dual bearing support, vibration-resistant, high-temperature resistant



2. Multi-Medium Adaptation Solutions

Targeting different industrial application scenarios, we provide tailored sealing and structural configurations:

• 🔥 Steam Service — Dedicated for Corrugated Machines & Drying Equipment

  • Features: Engineered specifically for high-heat and high-temperature environments.

  • Configuration: Utilizes high-temperature metal bellows or carbon graphite/silicon carbide seal combinations, offering exceptional thermal compensation, anti-cavitation, and dry-run resistance to effectively prevent high-temperature steam leakage.

• 💧 Water / Coolant Service

  • Features: Designed for high-speed, high-pressure cooling water and water-glycol systems.

  • Configuration: Features stainless steel bodies and silicon carbide sealing rings with strong anti-scaling and corrosion-resistant capabilities, meeting spindle and high-speed roller cooling demands.

• 🛢️ Thermal Oil Service

  • Features: Tailored for mold temperature controllers (thermo-controllers), hot presses, and thermal oil systems.

  • Configuration: Employs a specialized oil-free lubricated high-temperature sealing structure complemented by an efficient cooling chamber design to prevent thermal oil coking and carbonization at high temperatures.

• 💨 Compressed Air & MQL (Oil Mist) Service

  • Features: Suitable for pneumatic control and high-speed machining center MQL systems.

  • Configuration: Ultra-low leakage design ensuring air-tightness under high-speed rotation and stable pneumatic pressure without loss.

💡 Looking for Cost-Effective Direct Replacements? If your corrugated machines or packaging equipment face long lead times and high costs for imported joints, we can provide 100% dimensionally interchangeable, reliable-quality, and factory-direct-priced custom replacement services. Feel free to contact us anytime for detailed product catalogs and technical support!
