Comprehensive Rotary Joint Solutions for the Packaging & Converting Industry

I Industry Pain Points

Top 6 Critical Challenges in Packaging & Converting

In flexible packaging and paper converting, do unstable film/web tension or sudden temperature fluctuations keep forcing you to stop production and scrap entire batches of materials?

Rotary joints are the vital fluid “link” for your packaging machinery. At high line speeds with strict tolerances in printing, laminating, slitting, and bag-making, a small joint failure can lead to catastrophic production losses. We have summarized the Top 6 critical challenges specific to the packaging and converting industry:

Temperature Fluctuation on Heating Drums Causing Scrap

Worn mechanical seal faces cause thermal oil or hot water leakage. This leads to instant temperature drops on heating drums, resulting in uneven film shrinkage, poor adhesive curing, and massive material scrap.

Scale Buildup Causing Sudden Water Flooding

In water-cooled or steam-heated rollers, mineral scale easily sticks to the internal spring. When the machine slows down or restarts, the jammed spring fails to push the seal back, triggering a catastrophic water flood into the packaging area.

High-Temperature Safety Hazards for Operators

Continuously operating above 120°C makes standard rubber O-rings brittle and fragile. Failure leads to sudden spraying of superheated steam or thermal oil, posing a severe scalding risk to workers near the converting rollers.

Cross-Contamination Leading to Tension Instability

In slitting and rewinding machines, when hydraulic shaft brakes and pneumatic brakes share a rotary union, internal partition failure causes oil and air to mix. This jams hydraulic valves, causing unstable web tension and resulting in uneven finished film rolls.

Chemical Corrosion from Adhesives and Solvents

In dry laminating and coating machines, constant exposure to adhesives and solvent-based media causes dezincification of standard brass housings and swelling of seals, leading to increased downtime and higher maintenance costs.

Protracted Downtime During Maintenance

Replacing seals in traditional rotary joints requires extensive dismantling. During peak seasons with tight packaging order deadlines, even an extra half-day of downtime can severely damage your commercial reputation and delivery reliability.

II Core Equipment & Application Points

Where Rotary Joints Matter Most

Having identified the root causes, we need to pinpoint exactly where these failures occur. Next, we’ll walk through the core packaging production lines and highlight the critical “joints” that rely on rotary unions for stable operation.

Within complex packaging and converting processes, rotary joints are primarily deployed in the following four core machinery groups and their critical application points:

Printing & Laminating Machines(Precise Temperature Control)

Key Application Points: Heating drums, Cooling rollers.

Function: Delivers precisely controlled thermal oil, hot water, or steam for high-speed printing and dry laminating, followed by water cooling. This is the most critical area prone to high-temperature aging and scale jamming.

Slitting & Rewinding Machines(Ensuring Stable Tension)

Key Application Points: Rewind shafts, Unwind shafts (Slip shafts, Air shafts).

Function: Continuously supplies hydraulic oil or compressed air to the rotating shaft core to control pneumatic brakes and hydraulic clutches, ensuring constant film/web tension to prevent telescoping or wrinkles.

Bag-Making & Heat-Sealing Machines(Securing Solid Seals)

Key Application Points: Heat-sealing knife beams, Sealing guide rollers.

Function: During continuous bag-making, the joint transports constant-temperature hot water to the rotary sealing rollers, ensuring uniform sealing temperature for every bag to avoid weak seals or air leaks.

Coating & Extrusion Laminating Machines(Complex Hot/Cold Alternation)

Key Application Points: Calender rollers, Cooling pull rollers.

Function: Often requires a single rotary joint to simultaneously handle “thermal oil in” and “cooling water out.” This requires extremely high isolation sealing within multi-passage designs to strictly prevent cross-contamination between hot and cold media.

III Product Matching Solution

Precise Remedies for Every Pain Point

Having identified the problem areas within your machinery, it is time to apply the precise remedies. Tailored to the distinct operating conditions of each packaging machine, we have selected the following core models from our comprehensive product matrix to directly address your pain points:

Equipment & Position	Key Requirement	Model	Core Value Proposition
Printing / Laminating Machines (Heating Drums)	Anti high-temp aging; steam/oil leak prevention	RTQ Series	Designed for thermal oil and steam up to 350°C. Imported high-temp graphite seals eliminate rubber embrittlement under continuous extreme heat.
Printing / Laminating Machines (Cooling Rollers)	Anti-scale jamming; leak prevention	RTH Series	Patented external multi-spring design with unobstructed flow channels, eliminating scale buildup on springs and preventing instant leaks during restarts.
Bag-Making / Slitting Machines (General Cooling / Sealing)	Import replacement; cost-effective; versatile	RT-DE Series	Classic forged brass housing with stainless steel rotor, balanced mechanical seals, single/dual passage options. A high-cost-performance alternative to Deublin 55/57 series.
Coating Machines / Harsh Water Laminators	Corrosion resistance; harsh water protection	RT-JG Series	Precision-cast stainless steel housing with external multi-spring mechanism. All media-contacting parts are stainless steel — ideal for recycled or poor-quality water lines.
Slitting / Rewinding Machines (Unwind / Rewind Hydraulic Shafts)	Anti cross-contamination; high-pressure resistance	RT-GY Series	Engineered for hydraulic/pneumatic applications. Supports extreme pressures up to 35–100 MPa. Multi-passage independent isolation ensures precise brake and slip-tension control.
Auxiliary Hydraulic Oscillations (All Machines)	Low-speed rotary or oscillating high-pressure joints	JL-DD / JL-DC	Full stainless steel right-angle swivel joints with oil-free composite bearings. Designed for low-frequency rotation/swivel in high-pressure hydraulic circuits. Compact and easy to install.

▸ Featured Product Gallery

A closer look at our recommended rotary joint models

RTQ Series

RTH Series

RT-DE Series

RT-JG Series

RT-GY Series

JL-DD / JL-DC Series

IV Core Benefits & Customization Support

Beyond Model Selection — Lasting Value

The correct model selection is just the beginning. Our ultimate goal is to deliver “minimum downtime, low TCO, and absolute safety” to your packaging production lines. Based on real-world applications in the converting industry, our solution offers the following four core benefits:

▸ 1 Drastically Reduce Downtime and Scrap Rates

Eliminate sudden issues such as heating drum temperature fluctuations, cooling roller water floods, and tension control failures. A few hours of unplanned downtime due to a single joint failure can cost more than the joint itself. Our products precisely target the root causes, ensuring your packaging orders meet tight delivery schedules.

▸ 2 Lower Long-Term Maintenance & Operating Costs

Leveraging patented designs — such as external multi-springs to prevent scale (RTH), high-grade graphite seals for extreme heat (RTQ), and all-stainless steel construction for corrosion resistance (RT-JG) — we extend joint service life from the conventional 3–6 months to well over a year. This drastically cuts the frequency of spare part purchasing and workshop maintenance man-hours.

▸ 3 Guarantee Workplace Safety

Eliminate the hazards of sudden steam or thermal oil spray caused by high-temperature O-ring embrittlement, and prevent high-pressure hydraulic line bursts from cross-contamination. This provides a robust safety barrier for your factory’s EHS (Environment, Health, and Safety) compliance.

▸ 4 Full Customization Support for Extreme Conditions

We understand that real-world industrial conditions often exceed standard catalog parameters. Therefore, Ruitus offers comprehensive customization options:

▸ Ultra-High-Temperature Upgrade:

For continuous superheated steam beyond limits, we can upgrade O-ring materials to FFKM (Perfluoroelastomer).

▸ High-Pressure Upgrade:

For hydraulic demands exceeding 35 MPa, we can integrate heavy-duty load bearings and reinforced structural components.

▸ Multi-Passage Anti-Contamination Customization:

For complex converting machinery, we offer tailored designs for custom passage numbers, port sizes, and flange connections.

V About RUITUS

Your Trusted Manufacturing Partner

Xuzhou Ruitus Import & Export Co., Ltd. – Integrated Manufacturer & Exporter

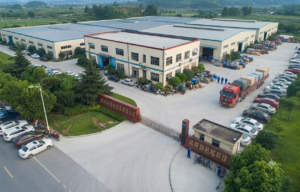

We are a manufacturer and exporter specializing in rotary joints, with our own factory in Shandong, covering R&D, production, and sales.

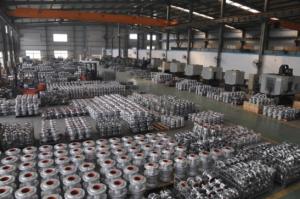

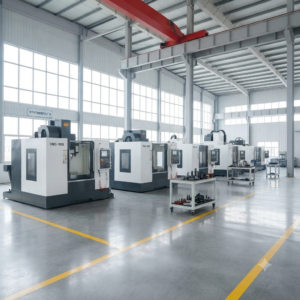

Our facility is equipped with CNC machining centers, precision grinders, and dedicated testing equipment, certified to ISO 9001. All processes from raw materials to finished products are completed in-house, ensuring quality control and reliable delivery.

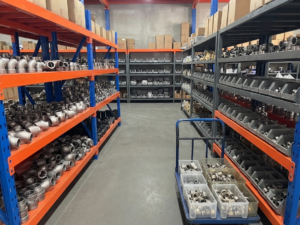

We supply rotary joints, swivel joints, metal hoses, syphons, and more, serving industries such as corrugated packaging, textile, chemical fiber, papermaking, and glass machinery. Customization and engineering support are available.

Factory-direct pricing, reliable quality – contact us for more information.
